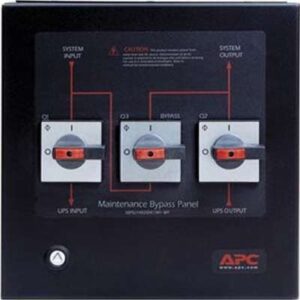

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Service Bypass Panel 200/208/240V 50A MBB L6-30P Hardwire Input |
| Manufacturer Part Number | SBP6KRMT2U |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Panel |
| Technical Information | |
| Plug / Connector Type | NEMA L6-30P |
| Receptacles | 2 x NEMA L6-20R, 1 x NEMA L6-30R |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 6000 W |
| Input Voltage | 200 V AC, 208 V AC |
| Output Voltage | 200 V AC, 208 V AC |
| Current | 30 A |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5″ |
| Width | 17″ |
| Depth | 26″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | RoHS (Restriction of Hazardous Substances) |
| Other Information | |
| Mercury Free | Yes |
| For Country / Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | Available |
| REACH Declaration | Available |
| EU RoHS Declaration | Available |
| Environmental Profile Availability | Available |
| End of Life Manual Availability | Available |
| REACH free of SVHC | Yes |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Cord Length | 10 ft |
| Certifications & Standards | CSA, GOST |
