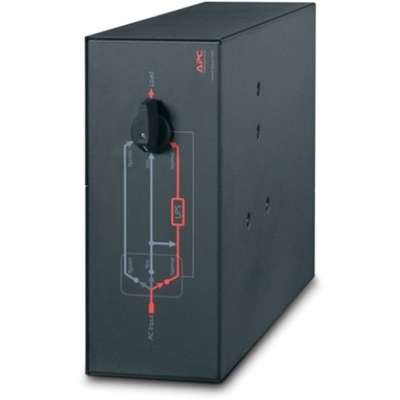

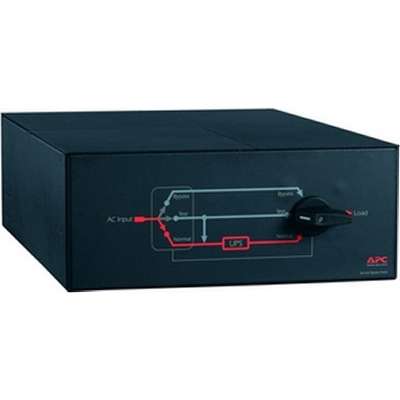

Extremely reliable service bypass panels designed for APC InfraStruXure type A, Smart-UPS, and Symmetra UPS products.
| Category | Specification |
|---|
| General Information |
| Product Name | Service Bypass Panel for 200-240V Symmetra RT 4-16KVA |
| Product Model | SBP16KP |
| Packaged Quantity | 1 Each |
| Product Type | Bypass Switch |
| Technical Information |
| Receptacles | 1 x Hard Wire 3-wire (H+N+E), 1 x Hard Wire 3-wire (2PH+G), 1 x Hard Wire 4-wire (2PH+N+G) |
| Protection Type | Overload |
| Power Description |
| Load Capacity (VA) | 20 kW |
| Input Voltage | 200 V AC, 208 V AC, 230 V AC, 480 V AC |
| Output Voltage | 120 V AC, 200 V AC, 208 V AC, 230 V AC |
| Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7″ |
| Width | 17″ |
| Depth | 26″ |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | RoHS (Restriction of Hazardous Substances) |
| Other Information |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| For Country / Region | United States |
| Product Take Back Program | No |
| RoHS Exemption Information | Available |
| REACH Declaration | Available |
| EU RoHS Declaration | Available |
| REACH free of SVHC | Yes |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Certifications & Standards | CSA, GOST |
