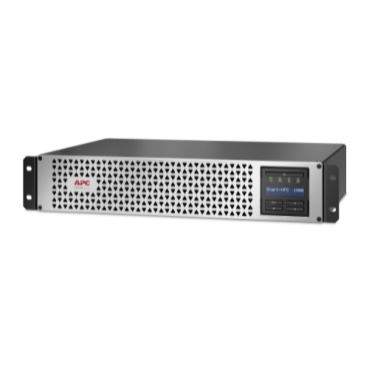

APC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD

Add to Wishlist
  • 1000VA/800W line interactive pure sine wave 2U rackmount UPS
  • Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
  • Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
  • Short depth UPS provides extra space for cable management
  • Tower convertible with stabilizing feet (sold separately)

AED11,899.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMTL1000RM2UC Category: Tag:

šŸ“„ Overview

Attribute Details
Lead Time Usually in Stock
Product Type Uninterruptible Power Supply (UPS)
Product Sub-family Cloud-enabled monitoring
Redundant No

šŸ–„ļø Communication & Software

Attribute Details
Communication Port SmartConnect Ethernet port
SmartSlot Yes
Software Package SmartConnect software (remote monitoring feature availability varies by terms of use)

šŸ”‹ Batteries & Runtime

Attribute Details
Battery Type Li-Ion (Lithium Ion)
Extendable Runtime No
Typical Recharge Time 3 hours
Battery Design Life 8ā€“10 years
Battery Charge Power 79 W rated
Battery Graph Comments Based on actual measured runtime with new, fully charged batteries and resistive load (PF = 1.0). Runtime may vary due to battery age, charge level, environment, and load.

āš™ļø General

Attribute Details
Provided Equipment Installation guide, Rack Mounting support rails, USB cable
USB Compatible Yes

šŸ“¦ Physical Specifications

Attribute Details
Rack Units (U) 2U
Cable Length 8 ft (2.4 m)
Color Black with silver front bezel

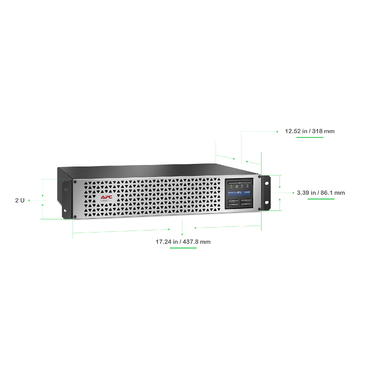

Height 3.39 in (8.6 cm)
Width 17.24 in (43.8 cm)
Depth 12.52 in (31.8 cm)
Net Weight 36.002 lb (16.33 kg)
Mounting Mode Rack-mounted
Mounting Preference Lower

šŸ”Œ Input Specifications

Attribute Details
Main Input Voltage 120 V
Input Voltage Range 75ā€“154 V adjustable / 82ā€“144 V
Input Frequency 50/60 Hz Ā± 3 Hz auto-sensing
Input Connection Type NEMA 5-15P
Input Protection Type Circuit breaker

šŸ”„ Output Specifications

Attribute Details
Main Output Voltage 120 V
Output Connection Type 6 Ɨ NEMA 5-15R
Rated Output Power 800 W / 1000 VA
Max Configurable Power 800 W / 1000 VA
Output Frequency (sync to mains) 50/60 Hz Ā± 3 Hz
Wave Type Sine wave
Topology Line Interactive
Transfer Time 6 ms typical, 10 ms maximum
Crest Factor 3:1
Harmonic Distortion Less than 5%
Output Voltage Tolerance Ā±2% (not specified but implied standard)

āœ… Certifications & Compliance

Attribute Details
Certifications NOM
Marking ā€”
Equipment Protection Policy Lifetime: $150,000

šŸŒ± Environmental Conditions

Attribute Details
Operating Temperature 32ā€“104 Ā°F (0ā€“40 Ā°C)
Storage Temperature 5ā€“113 Ā°F (-15ā€“45 Ā°C)
Operating Altitude 0ā€“10,000 ft
Storage Altitude 0ā€“25,000 ft (0ā€“7,620 m)
Relative Humidity (Operating) 0ā€“95% non-condensing
Relative Humidity (Storage) 0ā€“95% non-condensing
Acoustic Level 41 dBA
Thermal Dissipation (Online) 70 Btu/h
IP Degree of Protection IP20
