APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 2x NEMA 5-20R+6x NEMA 5-15R outlets, SmartConnect Port+Network Card, AVR

1920VA/1920W line interactive pure sine wave 2U rackmount UPS

Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets

Lithium-ion battery minimizes the need to replace battery during the life time of UPS

Cloud-based remote power monitoring via SmartConnect Ethernet Port

AED26,199.00

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. . It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMTL2200RM2UCNC Category: UPS , Power Back up and accessories Tag: SMTL2200RM2UCNC

📄 Overview

Attribute	Details
Lead Time	Usually in Stock
Product Type	Uninterruptible Power Supply (UPS)

⚡ Main Specifications

Attribute	Details
Run Time Load	1920 W
Min–Max Load	192–1920 W
Runtime at Max Load	7 minutes 42 seconds
Max Capacity Used	100%

🔌 Input Specifications

Attribute	Details
Main Input Voltage	120 V
Other Input Voltages	110 V, 125 V
Input Connection Type	NEMA 5-20P
Input Protection Type	Circuit breaker
Efficiency Voltage Range	82–144 V
Input Frequency	50/60 Hz ± 3 Hz (auto-sensing)

🔋 Battery & Runtime

Attribute	Details
Battery Type	Li-Ion (Lithium Ion)
Extendable Run Time	No
Typical Recharge Time	2 hours
RBC Quantity	1
Battery Charge Power	216 W rated
Battery Design Life	8–10 years
Replacement Battery	APCRBC174-LI
Battery Runtime Graph Notes	Runtime varies with battery condition, load, and environment

🔄 Output Specifications

Attribute	Details
Main Output Voltage	120 V
Other Output Voltages	110 V, 125 V
Rated Power (W / VA)	1920 W / 1920 VA
Max Configurable Power (W / VA)	1980 W / 2200 VA

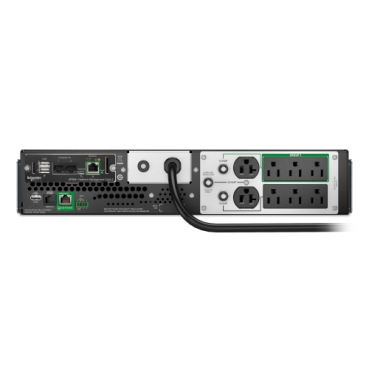

Output Connections	2 × NEMA 5-20R, 6 × NEMA 5-15R
Crest Factor	3:1
Harmonic Distortion	<5%
Transfer Time	6 ms typical, 10 ms maximum
Topology	Line Interactive
Wave Type	Sine Wave
Output Frequency (sync to mains)	50/60 Hz ± 3 Hz

💻 Connectivity & Software

Attribute	Details
Communication Ports	SmartConnect Ethernet port
Software	SmartConnect software (remote monitoring; availability varies)

🧰 General & Included Equipment

Attribute	Details
Included Equipment	Rack mounting brackets, rails, screws, washers, USB & Ethernet cables
Number of Power Modules	0
Web Sub-Family	Cloud-enabled monitoring
Redundant	No

📦 Physical

Attribute	Details
Rack Units (U)	2U
Cable Length	8 ft (2.4 m)
Color	Black with silver bezel
Height	3.39 in (8.6 cm)
Width	17.01 in (43.2 cm)
Depth	26.89 in (68.3 cm)
Net Weight	70.3 lb (31.9 kg)
Mounting Preference	Lower
Mounting Mode	Rack-mounted
USB Compatible	Yes

✅ Certifications

Attribute	Details
Certifications	cULus, ENERGY STAR V2.0 (USA)

🌱 Environmental

Attribute	Details
Acoustic Level	55 dB
Thermal Dissipation (Online)	215 Btu/h
Operating Altitude	0–10,000 ft
Storage Altitude	0–25,000 ft (0–7620 m)
Operating Temperature	32–104 °F (0–40 °C)
Storage Temperature	5–113 °F (-15–45 °C)
Operating Relative Humidity	0–95% (non-condensing)
Storage Relative Humidity	0–95% (non-condensing)
IP Degree of Protection	IP20
