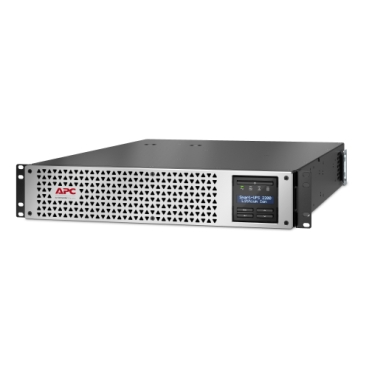

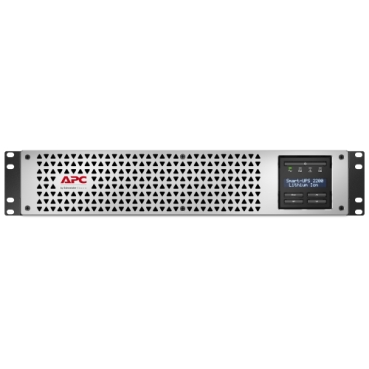

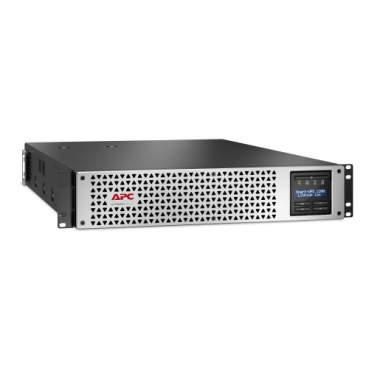

APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 2x NEMA 5-20R+6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, LCD [TAA]


  • 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
  • Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
  • Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Graceful shutdown of physical servers, virtual machines and HCI Clusters

AED22,999.00

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMTL2200RM2UCUS Category: Tag:

UPS Specifications Overview

Category Details
Overview
Lead Time Usually in Stock
Main Run Time for Load 1920 W, Min–Max: 192–1920 W, 7min 42s
Max Capacity Used 100%
Product Type Uninterruptible Power Supply (UPS)

Complementary

Attribute Details
Software Package SmartConnect software (remote monitoring; feature availability varies)

Batteries & Runtime

Attribute Details
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Li-Ion (Lithium Ion)
Battery Graph Comments Based on actual measurements, new batteries, PF=1.0. Results may vary.
Extendable Run Time 0
Typical Recharge Time 2 hours
RBC Quantity 1
Battery Design Life 8–10 years
Battery Charge Power 216 W rated
Replacement Battery APCRBC174-LI

General

Attribute Details
Provided Equipment Rack Mounting Brackets
Number of Power Modules 0
Product Web Sub-Family Cloud-enabled monitoring
Redundant No

Physical

Attribute Details
Rack Units 2U
Cable Length 8 ft (2.4 m)
Color Black with silver front bezel
Height 3.39 in (8.6 cm)
Width 17.01 in (43.2 cm)
Depth 26.89 in (68.3 cm)
Weight 70.3 lb (31.9 kg)
Mounting Preference Lower
Mounting Mode Rack-mounted
USB Compatible Yes

Input

Attribute Details
Main Input Voltage 120 V
Other Input Voltage 110 V
Input Connection Type NEMA 5-20P
Input Protection Type Circuit breaker
Efficiency at Full Load 82–144 V
Number of Input Connectors 1
Input Frequency 50/60 Hz ± 3 Hz auto-sensing

Output

Attribute Details
Main Output Voltage 120 V
Other Output Voltage 110 V
kW Rating 1920 W
Rated Power (VA) 1920 VA
Output Connection Type 2 NEMA 5-20R
Crest Factor 3:1
Harmonic Distortion <5%
Max Configurable Power (VA) 2200 VA
Max Configurable Power (Watts) 1980 W
Transfer Time 6 ms typical / 10 ms max
Topology Line Interactive
Waveform Type Sine Wave
Output Frequency 50/60 Hz ± 3 Hz sync to mains
