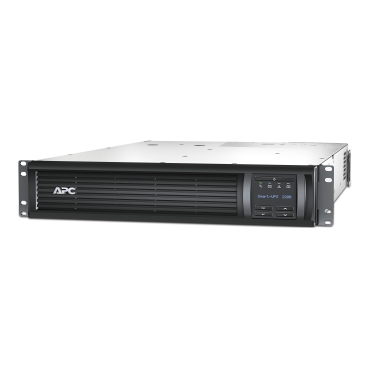

APC Smart-UPS, Line Interactive, 2200VA, Rackmount, 120V, 10x NEMA 5-15R outlets, SmartSlot, Auto Sense Voltage 120V/230V, AVR, LCD

Add to Wishlist
  • 2200VA/1980W line interactive pure sine wave 2U rackmount UPS
  • Ideal for servers, storage, networking, business VoIP, retail POS
  • Automatic Voltage Regulation helps correct utility voltage
  • Graceful shutdown using serial or USB cables via PowerChute Business Edition

AED20,199.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 10x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT2200R2X167 Category: Tag:

Overview

Attribute Detail
Lead Time Usually in Stock

Main Specifications

Attribute Detail
Product Type Uninterruptible Power Supply (UPS)
Run Time for Load 1980 W (Min-max: 198–1980 W) – 7min 21s
Max. Capacity Used 100%

Battery & Runtime

Attribute Detail
Run Time Display View Runtime Graph
Efficiency Display View Efficiency Graph
Battery Type Lead-Acid battery
Extendable Runtime No
Included Battery Modules 0
Empty Battery Slots 0
Typical Recharge Time 4 h
RBC Quantity 1
Battery Life 3–5 years
Battery Charge Power 30 W rated

General Information

Attribute Detail
Provided Equipment User Manual
Product Sub-family TAA Compliance
Redundant No

Physical Characteristics

Attribute Detail
Number of Cables 4
Height 3.4 in (86 mm)
Width 17.008 in (432 mm)
Depth 26.9 in (683 mm)
Weight 93.5 lb (42.4 kg)
Mounting Location Front
Mounting Preference No preference
Mounting Mode Rack-mounted
Two-Post Mountable No
USB Compatible Yes

Input Specifications

Attribute Detail
Main Input Voltage 120 V
Input Connection Types NEMA 5-15P, Schuko CEE 7 / EU1-16P, BS1363A British, CEI 23-16 Italian
Efficiency at Full Load 100–290 V / 120–230 V
Input Frequency 50/60 Hz ±3 Hz (auto-sensing)

Output Specifications

Attribute Detail
Main Output Voltage 120 V
Power Rating (W / VA) 1980 W / 2200 VA
Output Connection Type 10 × NEMA 5-15R
Harmonic Distortion < 5%
Max Configurable Power (W / VA) 1980 W / 2200 VA
Transfer Time 6 ms typical, 10 ms max
Topology Line Interactive
Waveform Type Sine wave
Output Frequency 50/60 Hz ±3 Hz (sync to mains)

Conformance

Attribute Detail
Certifications CSA

Environmental Conditions

Attribute Detail
Acoustic Level 55 dBA
Operating Altitude 0–9842.52 ft (0–3000 m)
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature -4–131 °F (-20–55 °C)
Storage Altitude 0–49212.6 ft (0–15000 m)
Relative Humidity (Operating/Storage) 0–95%
