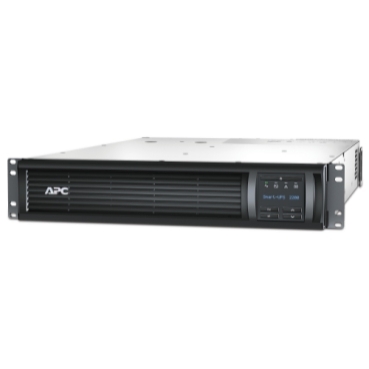

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6 NEMA 5-15R+2 NEMA 5-20R outlets, Network Card, AVR, LCD [TAA]

1920VA/1920W line interactive pure sine wave 2U rackmount UPS

TAA certified product

Automatic Voltage Regulation helps correct utility voltage

Preinstalled Network Management Card for network-based UPS monitoring & management

Graceful shutdown of physical servers, virtual machines and HCI Clusters

AED17,499.00

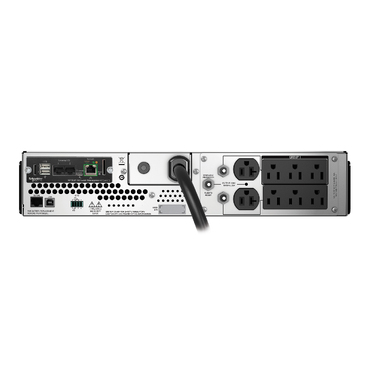

This APC Smart-UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power on battery mode to support critical electronics during power disruptions. The Smart-UPS includes a NEMA 5-20P input, six NEMA 5-15R and two NEMA 5-20R outlets. The UPS has a preinstalled Network Management Card for network-based monitoring and management of UPS. The PowerChute Network Shutdown allows for a graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT2200RM2UNCUS Category: UPS , Power Back up and accessories Tag: SMT2200RM2UNCUS

Overview

Attribute	Value
Lead Time	Usually in Stock

Main

Attribute	Value
Run Time for Load	1920 W
Min-Max Load	192–1920 W
Runtime at Max Load	5 min 23 s
Max. Capacity Used	100%
Product or Component Type	Uninterruptible Power Supply (UPS)

Complementary

Attribute	Value
Software Package	SmartConnect software for remote power monitoring (availability varies)

Batteries & Runtime

Attribute	Value
Run Time	View Runtime Graph
Efficiency	View Efficiency Graph
Battery Type	Lead-Acid Battery
Extendable Run Time	No (0)
Included Battery Modules	0
Battery Slots Empty	0
Typical Recharge Time	3 h
Battery Life	3–5 years
Replacement Battery	RBC43
Battery Charge Power	164 W rated

General

Attribute	Value
Provided Equipment	CD with Software
Number of Power Modules	0
Power Module Filled Slots	0
Power Module Free Slots	0
Redundant	No

Physical

Attribute	Value
Number of Rack Units	2U
Cable Length	8 ft (2.4 m)
Number of Cables	1
Color	Black
Height	3.39 in (8.6 cm)
Width	17.01 in (43.2 cm)
Depth	26.89 in (68.3 cm)
Product Weight	93.28 lb(US) (42.31 kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-mounted
Two Post Mountable	No (0)
USB Compatible	Yes

Input

Attribute	Value
Main Input Voltage	120 V
Input Connection Type	NEMA 5-20P
Efficiency at Full Load	75–154 V adjustable
Input Frequency	50/60 Hz ± 3 Hz (auto-sensing)

Output

Attribute	Value
Main Output Voltage	120 V
kW Rating	1920 W
Rated Power in VA	1920 VA
Output Connection Type	6 NEMA 5-15R, 2 NEMA 5-20R
Harmonic Distortion	Less than 5%
Max Configurable Power (VA)	2200 VA
Max Configurable Power (Watts)	1920 W
Transfer Time	4 ms typical / 8 ms maximum
Topology	Line Interactive
Waveform Type	Sine Wave
Output Frequency	50/60 Hz ± 3 Hz (sync to mains)

Conformance

Attribute	Value
Product Certifications	CSA, ENERGY STAR V2.0 (USA)
TAA Compliance	Yes
Equipment Protection Policy	Lifetime : $150,000

Environmental

Attribute	Value
Acoustic Level	55 dBA
Online Thermal Dissipation	215 Btu/h
Operating Altitude	0–10,000 ft
Operating Temperature	32–104 °F (0–40 °C)
Storage Temperature	5–113 °F (-15–45 °C)
Storage Altitude	0–50,000 ft (0–15,240 m)
Relative Humidity (Operating)	0–95%
Relative Humidity (Storage)	0–95%
