APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6 NEMA 5-15R+2 NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD [TAA]

Add to Wishlist
  • 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
  • TAA certified product
  • Automatic Voltage Regulation helps correct utility voltage
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

AED12,499.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power on battery mode to support critical electronics during power disruptions. The Smart-UPS includes a NEMA 5-20P input, six NEMA 5-15R and two NEMA 5-20R outlets. This provides cloud-based remote power monitoring, allows for UPS firmware upgrades, enables remote diagnostics, and sends proactive email notifications with recommended actions. The SmartSlot can support an optional Network Management Card that enables graceful shutdown of physical servers, virtual machines, and HCI clusters through PowerChute Network Shutdown. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT2200RM2UCUS Category: Tag:

Overview

Attribute Value
Lead Time Usually in Stock

Main

Attribute Value
Run Time for Load 1920 W
Min-Max Load 192–1920 W
Runtime at Max Load 6 min 34 s
Max. Capacity Used 100%
Product or Component Type Uninterruptible Power Supply (UPS)

Complementary

Attribute Value
Communication Port Type SmartConnect Ethernet port
SmartSlot Yes
Software Package SmartConnect software for remote monitoring (availability varies)

Batteries & Runtime

Attribute Value
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Lead-Acid Battery
Extendable Run Time No (0)
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery RBC43
Battery Charge Power 179 W rated

General

Attribute Value
Provided Equipment Rack Mounting Brackets
Number of Power Modules 0
Power Module Filled Slots 0
Power Module Free Slots 0
Product Web Sub-Family Cloud-enabled monitoring
Redundant No

Physical

Attribute Value
Number of Rack Units 2U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black
Height 3.39 in (8.6 cm)
Width 17.01 in (43.2 cm)
Depth 26.89 in (68.3 cm)
Product Weight 93.28 lb(US) (42.31 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable No (0)
USB Compatible Yes

Input

Attribute Value
Main Input Voltage 120 V
Input Connection Type NEMA 5-20P
Efficiency at Full Load 75–154 V adjustable
Input Frequency 50/60 Hz ± 3 Hz (auto-sensing)

Output

Attribute Value
Main Output Voltage 120 V
Other Output Voltage 110 V
kW Rating 1920 W
Rated Power in VA 1920 VA

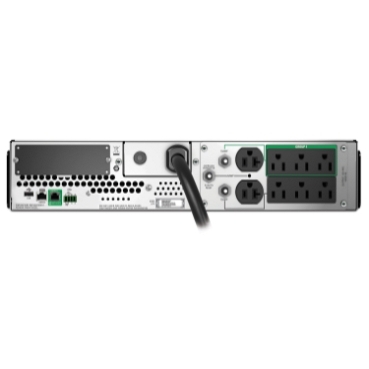

Output Connection Type 6 NEMA 5-15R, 2 NEMA 5-20R
Harmonic Distortion Less than 5%
Max Configurable Power (VA) 2200 VA
Max Configurable Power (Watts) 1980 W
Transfer Time 6 ms typical / 10 ms maximum
Topology Line Interactive
Waveform Type Sine Wave
Output Frequency 50/60 Hz ± 3 Hz (sync to mains)

Conformance

Attribute Value
Product Certifications cULus, ENERGY STAR V2.0 (USA)
TAA Compliance Yes
Equipment Protection Policy Lifetime : $150,000

Environmental

Attribute Value
Acoustic Level 55 dBA
Online Thermal Dissipation 215 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
Relative Humidity (Operating) 0–95%
Relative Humidity (Storage) 0–95%
