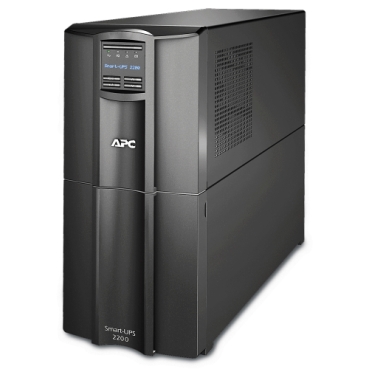

APC Smart-UPS, Line Interactive, 2200VA, Tower, 120V, 8x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD


  • 1920VA/1920W line interactive pure sine wave tower UPS
  • Ideal for servers, storage, networking, business VoIP and desktops, retail POS
  • Automatic Voltage Regulation helps correct utility voltage
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

AED9,099.00

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 8 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms It provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT2200C Category: Tag:

UPS Product Specifications Table

Category Specification
Overview Intelligent and efficient network power protection from entry-level to scalable runtime. Ideal for servers, POS, routers, switches, hubs, and other devices.
Lead Time Usually Ships within 2 Weeks

Main

| Product Type | Uninterruptible Power Supply (UPS) |

Complementary

| Communication Ports | SmartConnect Ethernet, SmartSlot |
| Software Package | SmartConnect software for remote power monitoring (availability varies by terms of use) |

Batteries & Runtime

| Battery Type | Lead-Acid battery |
| Extendable Run Time | No (0) |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 h |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | RBC55 |
| Battery Charge Power | 271 W rated |

General

| Provided Equipment | Smart-UPS signalling RS-232 cable, USB cable |
| Power Modules | 0 installed / 0 filled / 0 free |
| Web Sub-Family | Cloud-enabled monitoring |
| Redundant | No |

Physical

| Cable Length | 6 ft (1.8 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 17.13 in (43.5 cm) |
| Width | 7.72 in (19.6 cm) |
| Depth | 21.42 in (54.4 cm) |
| Net Weight | 112.24 lb (50.91 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two Post Mountable | No (0) |
| USB Compatible | Yes |

Input

| Main Input Voltage | 120 V |
| Other Input Voltages| 110 V, 125 V |
| Input Connection Type | NEMA 5-20P |
| Efficiency (Full Load) | 75–154 V adjustable / 82–144 V |
| Input Frequency | 50/60 Hz ± 3 Hz (auto-sensing) |

Output

| Main Output Voltage | 120 V |
| Other Output Voltages | 110 V, 125 V |
| kW Rating | 1920 W |
| Rated Power in VA | 1920 VA |
| Max Configurable Power | 2200 VA / 1980 W |
| Output Connection Type | 8 NEMA 5-15R, 2 NEMA 5-20R |
| Harmonic Distortion | Less than 5% |
| Transfer Time | 6 ms typical, 10 ms max |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |

Conformance

| Certifications | cULus, ENERGY STAR V2.0 (USA) |
| Equipment Protection Policy | Lifetime : $150,000 |

Environmental

| Acoustic Level | 45 dBA |
| Online Thermal Dissipation | 275 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Operating Humidity | 0–95% |
| Storage Humidity | 0–95% |
