APC Smart-UPS, Line Interactive, 3kVA, Rackmount 2U, 120V, 6 NEMA 5-15R+2 NEMA 5-20R outlets, Network Card, AVR, LCD [TAA]

2880VA/2700W line interactive pure sine wave 2U rackmount UPS

TAA certified product

Automatic Voltage Regulation helps correct utility voltage

Preinstalled Network Management Card for network-based UPS monitoring & management

Graceful shutdown of physical servers, virtual machines and HCI Clusters

AED15,699.00

This APC Smart-UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power on battery mode to support critical electronics during power disruptions. The Smart-UPS includes a NEMA L5-30P input, two NEMA 5-20R and six NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for network-based monitoring and management of UPS. The PowerChute Network Shutdown allows for a graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT3000RM2UNCUS Category: UPS , Power Back up and accessories Tag: SMT3000RM2UNCUS

Overview

Item	Details
Lead time	Usually in Stock
Main Run time for load	3 min 23 s @ 2700 W (Min-max: 270–2700 W)
Max. Capacity Used	100%
Product Type	Uninterruptible Power Supply (UPS)

Complementary

Item	Details
Software package	SmartConnect software (remote power monitoring, availability varies)

Batteries & Runtime

Item	Details
Battery Type	Lead-Acid battery
Extendable Run Time	0
Included Battery Modules	0
Battery Slots Empty	0
Typical Recharge Time	3 hours
RBC Quantity	1
Battery Life	3–5 years
Replacement Battery	RBC43
Battery Charge Power (Watts)	188 W rated
Run Time / Efficiency Graphs	View Runtime Graph / Efficiency Graph

General

Item	Details
Provided Equipment	CD with software
Number of Power Modules	0
Power Module Filled Slots	0
Power Module Free Slots	0
Redundant	No

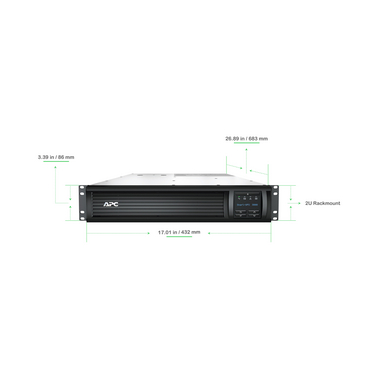

Physical

Item	Details
Rack Units	2U
Cable Length	8 ft (2.4 m)
Number of Cables	1
Color	Black
Height	3.4 in (86.4 mm)
Width	17.01 in (43.2 cm)
Depth	26.89 in (68.3 cm)
Product Weight	97.62 lb (44.28 kg)
Mounting Location	Front
Mounting Preference	No preference
Mounting Mode	Not rack-mountable
Two Post Mountable	0
USB Compatible	Yes

Input

Item	Details
Main Input Voltage	120 V
Other Input Voltage	110 V
Input Connection Type	NEMA L5-30P
Input Voltage Range	75–154 V adjustable
Input Frequency	50/60 Hz ± 3 Hz auto-sensing

Output

Item	Details
Main Output Voltage	120 V
Rated Power	2700 W
Rated Power (VA)	2880 VA
Output Connection Type	6 × NEMA 5-15R
Harmonic Distortion	< 5%
Max Configurable Power (VA/W)	2880 VA / 2700 W
Transfer Time	4 ms typical, 8 ms max
Topology	Line Interactive
Waveform Type	Sine Wave
Output Frequency	50/60 Hz ± 3 Hz (sync to mains)

Conformance

Item	Details
Certifications	CSA, ENERGY STAR V2.0 (USA)
TAA Compliance	Yes
Equipment Protection Policy	Lifetime: $150,000

Environmental

Item	Details
Acoustic Level	55 dBA
Online Thermal Dissipation	348 Btu/h
Operating Altitude	0–10,000 ft
Operating Temperature	32–104 °F (0–40 °C)
Storage Temperature	5–113 °F (-15–45 °C)
Storage Altitude	0–50,000 ft (0–15,240 m)
Operating / Storage Humidity	0–95%
