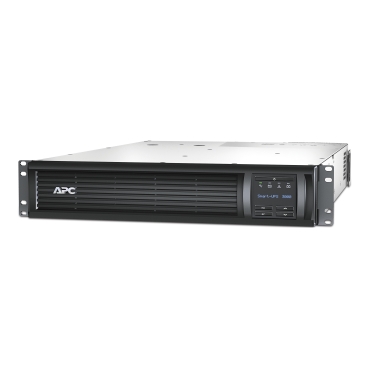

APC Smart-UPS, Line Interactive, 3kVA, Rackmount 2U, 120V, 6 NEMA 5-15R+2 NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD [TAA]

Add to Wishlist
  • 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
  • TAA certified product
  • Automatic Voltage Regulation helps correct utility voltage
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

AED14,499.00

Add to Wishlist

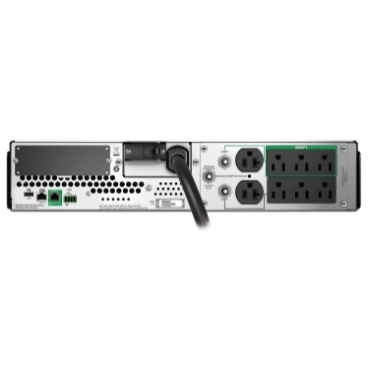

This APC Smart-UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power on battery mode to support critical electronics during power disruptions. The Smart-UPS includes a NEMA L5-30P input, six NEMA 5-15R and two NEMA 5-20R outlets. This provides cloud-based remote power monitoring, allows for UPS firmware upgrades, enables remote diagnostics, and sends proactive email notifications with recommended actions. The SmartSlot can support an optional Network Management Card that enables graceful shutdown of physical servers, virtual machines, and HCI clusters through PowerChute Network Shutdown. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT3000RM2UCUS Category: Tag:

Overview

Attribute Value
Lead Time Usually in Stock

Main

Attribute Value
Run Time for Load 2700 W
Min-Max Load 270–2700 W
Runtime at Max Load 2 min 49 s
Max. Capacity Used 100%
Product or Component Type Uninterruptible Power Supply (UPS)

Complementary

Attribute Value
Communication Port Type SmartConnect Ethernet port
SmartSlot Yes
Software Package SmartConnect software for remote power monitoring (availability varies)

Batteries & Runtime

Attribute Value
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Lead-Acid Battery
Extendable Run Time No (0)
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery RBC43
Battery Charge Power 172 W rated

General

Attribute Value
Provided Equipment Documentation CD
Number of Power Modules 0
Power Module Filled Slots 0
Power Module Free Slots 0
Product Web Sub-Family Cloud-enabled monitoring
Redundant No

Physical

Attribute Value
Number of Rack Units 2U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black
Height 3.39 in (8.6 cm)
Width 17.01 in (43.2 cm)
Depth 26.89 in (68.3 cm)
Product Weight 97.62 lb(US) (44.28 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable No (0)
USB Compatible Yes

Input

Attribute Value
Main Input Voltage 120 V
Other Input Voltage 110 V
Input Connection Type NEMA L5-30P
Efficiency at Full Load 75–154 V adjustable
Input Frequency 50/60 Hz ± 3 Hz (auto-sensing)

Output

Attribute Value
Main Output Voltage 120 V
Other Output Voltage 110 V
kW Rating 2700 W
Rated Power in VA 2880 VA
Output Connection Type 6 NEMA 5-15R
Harmonic Distortion Less than 5%
Max Configurable Power (VA) 2880 VA
Max Configurable Power (Watts) 2700 W
Transfer Time 6 ms typical / 10 ms maximum
Topology Line Interactive
Waveform Type Sine Wave
Output Frequency 50/60 Hz ± 3 Hz (sync to mains)

Conformance

Attribute Value
Product Certifications cULus, ENERGY STAR V2.0 (USA)
TAA Compliance Yes
Equipment Protection Policy Lifetime : $150,000

Environmental

Attribute Value
Acoustic Level 55 dBA
Online Thermal Dissipation 348 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
Relative Humidity (Operating) 0–95%
Relative Humidity (Storage) 0–95%
