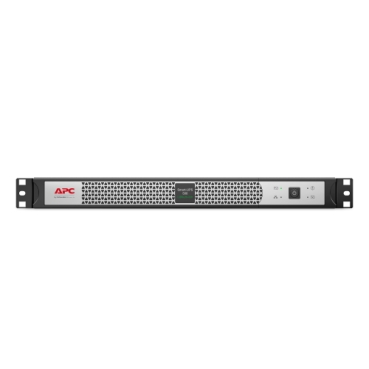

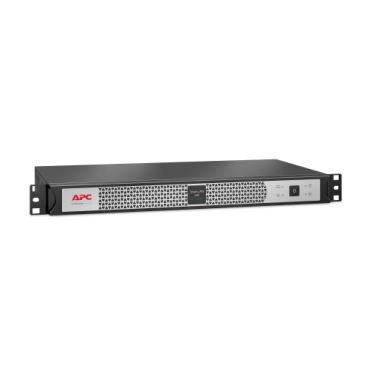

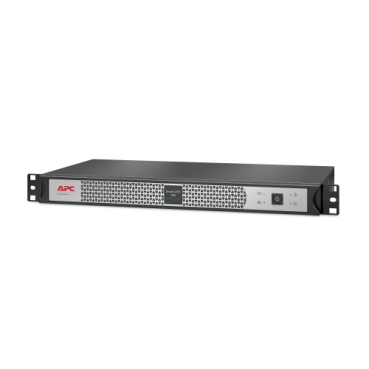

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Network Card, Short Depth
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Short depth UPS provides extra space for cable management
- Preinstalled Network Management Card for network-based UPS monitoring & management
AED6,999.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
Overview
| Parameter | Details |
|---|---|
| Lead Time | Usually in Stock |
Main Specifications
| Parameter | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
Batteries & Runtime
| Parameter | Details |
|---|---|
| Run Time Graph | View Runtime Graph |
| Efficiency Graph | View Efficiency Graph |
| Battery Type | Li-Ion (Lithium Ion) |
| Battery Design Life | 8–10 years |
| Extendable Run Time | No (0) |
| Battery Charge Power | 10 W (rated) |
| Battery Notes | Runtime data based on new, fully charged batteries under balanced resistive load (PF = 1.0). Actual runtimes vary based on environment and load. |
General
| Parameter | Details |
|---|---|
| Provided Equipment | CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable |
| Redundant | No |
Physical
| Parameter | Details |
|---|---|
| Rack Units | 1U |
| Cable Length | 6 ft (1.8 m) |
| Number of Cables | 1 |
| Color | Black with silver front bezel |
| Height | 1.73 in (4.4 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 9.13 in (23.2 cm) |
| Net Weight | 9.30 lb (4.22 kg) |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted |
| USB Compatible | Yes |
Input
| Parameter | Details |
|---|---|
| Main Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Input Protection Type | Circuit breaker |
| Efficiency at Full Load | 92–139 V |
| Input Frequency | 50/60 Hz ± 3 Hz auto sensing |
Output
| Parameter | Details |
|---|---|
| Main Output Voltage | 120 V |
| kW Rating | 400 W |
| Rated Power (VA) | 500 VA |
| Output Connection Type | 4× NEMA 5-15R |
| Harmonic Distortion | Less than 5% |
| Max Configurable Power (VA) | 500 VA |
| Max Configurable Power (Watts) | 400 W |
| Transfer Time | 6 ms typical / 10 ms maximum |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (Sync to Mains) | 50/60 Hz ± 3 Hz |
Conformance & Certifications
| Parameter | Details |
|---|---|
| Product Certifications | cULus, NOM |
| Equipment Protection Policy | Lifetime : $150,000 |
Environmental
| Parameter | Details |
|---|---|
| Acoustic Level | 45 dBA |
| Online Thermal Dissipation | 41.61 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–25,000 ft (0–7,620 m) |
| IP Degree of Protection | IP20 |
| Relative Humidity (Operation) | 0–95% non-condensing |
| Relative Humidity (Storage) | 0–95% non-condensing |
