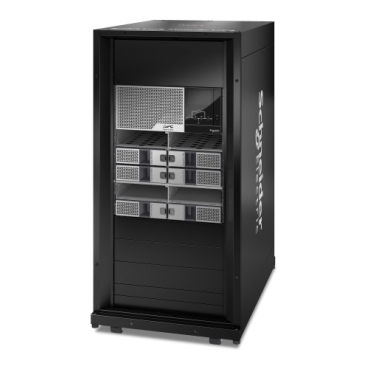

APC Smart-UPS Modular Ultra 20kW Frame, N+1 Redundant,Tower, 24U, 208/120V

Add to Wishlist
  • 24U Tower UPS chassis, scalable to 20kW
  • 125 Amp input Smart-UPS Modular Ultra Tower Frame
  • Works with genuine APC modules SRYL5KPMT, SRYLBM sold separately

AED169,299.00

Add to Wishlist

Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.

SKU: SRYLF20T24 Category: Tag:

UPS Frame Specification Table

Category Parameter Value
Overview Lead Time Usually in Stock
Main Main Input Voltage 208 V AC
Other Input Voltage 208 V
Main Output Voltage 240 V AC
Other Output Voltage 240 V
Product or Component Type Frame
Battery Type Li-Ion (Lithium Ion)
Range of Product Smart-UPS Modular Ultra
General Product Web Sub-family Network management card
Number of Power Modules 2
Number of Preinstalled Power Modules 2
Physical Color Black and silver
Height 47.2 in (1198 mm)
Width 23.6 in (600 mm)
Depth 35.4 in (900 mm)
Product Weight 387.6 lb (175.8 kg)
Mounting Mode Rack-mounted with kit
USB Compatible No
Input Input Frequency 40–70 Hz
Number of Input Connectors 1 Hard Wire 4-wire (2PH+N+G)
Maximum Input Current per Phase 51 A
Load Power Factor 0.5 leading to 0.5 lagging
Output Topology On-Line
Waveform Type Sine wave
Overload Operation 60 seconds @ 125%, 30 seconds @ 150%
Bypass Type Built-in Bypass
