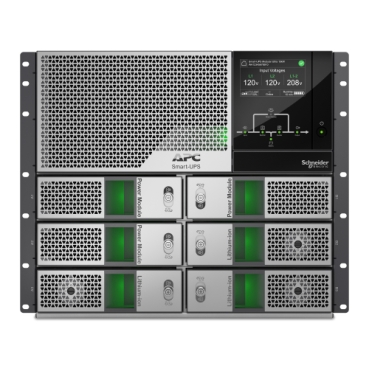

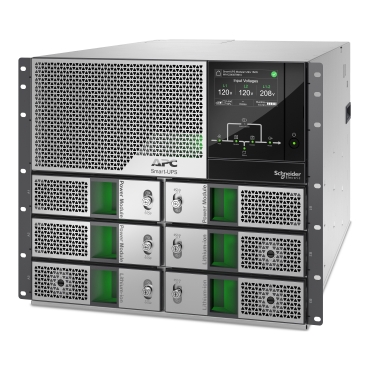

APC Smart-UPS Modular Ultra On-Line, 15kW, Lithium-ion, Rackmount 9U, 208/240V, Network Management, Extended runtime, W/rail kit

Add to Wishlist
  • 9U Rackmount UPS Chassis, scalable toĀ 15kWĀ withĀ 3 (5kW)Ā Power andĀ 3Ā Battery Modules
  • 100A chassis backward compatible with existing Symmetra LX wiring
  • At 50% smaller & 60% lighter, fewer people are required to install
  • The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction

AED225,099.00

Add to Wishlist

Smart-UPSā„¢ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 100A chassis supports backward compatibility with your existing Symmetra LX wiring, supporting up to 15kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.

SKU: SRYL15K15RMXLT Category: Tag:

āš™ļø Smart-UPS Modular Ultra ā€“ 15 kW Specification

Category Attribute Value
Overview Lead Time Usually in Stock
Main Run Time for Load 15000 W
Min-Max Load Range 1500 ā€“ 15000 W
Runtime at Full Load 5 min 46 sec
Max. Capacity Used 100%
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 120 V, 208 V
Other Output Voltage 240 V
kW Rating 15000 W
Rated Power in VA 15000 VA
Number of Rack Units 9U
Battery Type Li-Ion (Lithium Ion)
Range of Product Smart-UPS Modular Ultra
Batteries & Runtime Included Battery Modules 3
Battery Slots Empty 0
RBC Quantity 3
Battery Design Life 8 ā€“ 10 years
Extendable Runtime Yes
Runtime Graph / Efficiency Graph Available
General Web Sub-Family Network management card
Number of Power Modules 3
Preinstalled Power Modules 3
Power Module Free Slots 0
Power Module Filled Slots 3
Redundant Yes
Physical Color Silver
Height 15.4 in (390 mm)
Width 17.3 in (440 mm)
Depth 27.6 in (700 mm)
Weight 243.6 lb (110.5 kg)
Mounting Location Front, Rear, Side
Mounting Mode Rack-mounted
Two Post Mountable Yes
USB Compatible Yes
Mounting Position Horizontal
Input Input Frequency 40 ā€“ 70 Hz
Number of Input Connectors 1 Hard Wire 4-wire (2PH+N+G)
Max Input Current per Phase 75 A
Load Power Factor 0.5 leading to 0.5 lagging
Output Max Configurable Power (W) 15000 W
Topology On-Line
Waveform Type Sine wave
Overload Operation 60s @ 125%, 30s @ 150%
Bypass Type Built-in Bypass
Max Configurable Power (VA) 15000 VA
Conformance Product Certifications ENERGY STAR V2.0 (USA)
Marking cULus, FCC
Environmental Operating Temp. 32 ā€“ 104 Ā°F (0 ā€“ 40 Ā°C)
Operating Altitude 0 ā€“ 9842.52 ft (0 ā€“ 3000 m)
Storage Temp. 5 ā€“ 113 Ā°F (-15 ā€“ 45 Ā°C)
Storage Humidity 0 ā€“ 95%
Storage Altitude 0 ā€“ 49212.6 ft (0 ā€“ 15000 m)
