UPS , Power Back up and accessories

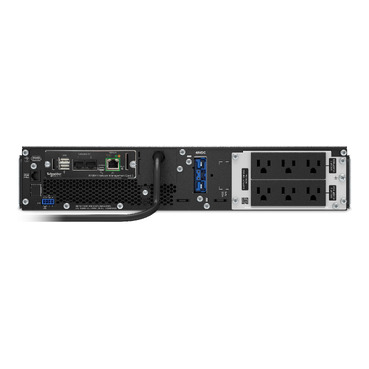

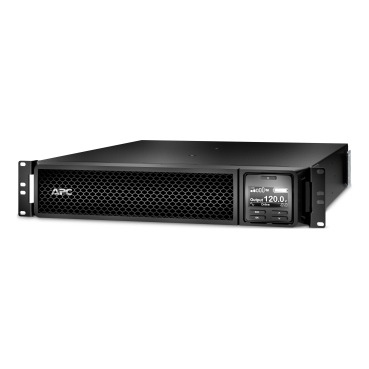

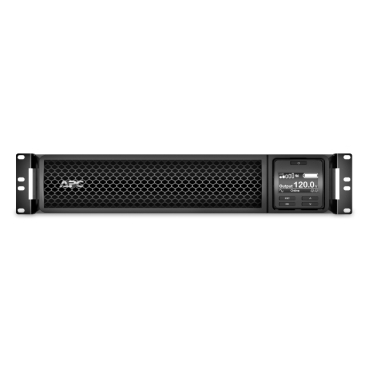

APC Smart-UPS On-Line, 1000VA, Rackmount 2U, 120V, 6x 5-15R NEMA outlets, Network Card, Extended runtime, W/ rail kit
- 1000VA/900W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Add up to 10 external battery packs (SRT48RMBP) for extended runtime
AED11,499.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Overview
| Attribute | Value |
|---|---|
| Lead time | Usually in Stock |
Main
| Attribute | Value |
|---|---|
| Run time for load | 900 W (Min-max: 90-900 W) |
| Run time duration | 10 min 29 s |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 120 V |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Main Output Voltage | 120 V |
| kW Rating | 900 W |
| Rated power in VA | 1000 VA |
| Input Connection Type | NEMA 5-15P |
| Output Connection Type | 6 NEMA 5-15R |
| Number of rack units | 2U |
| Cable length | 6 ft (1.8 m) |
| Number of cables | 1 |
| Provided Equipment | CD with software, Documentation CD, Installation guide, Network Management Card, Rack mounting hardware, Rack Mounting brackets, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card |
Batteries & Runtime
| Attribute | Value |
|---|---|
| Battery Type | Lead-Acid battery |
| Battery Voltage | 48 V |
| Extendable Run Time | 1 |
| Included Battery Modules | 1 |
| Battery Slots Empty | 0 |
| Typical recharge time | 3 h |
| RBC Quantity | 1 |
| Battery life | 3–5 years |
| Replacement battery | APCRBC155 |
| Battery Charge Power | 102 W rated |
General
| Attribute | Value |
|---|---|
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Product web sub-family | High density |
| Redundant | No |
| Topology | Double Conversion Online |
Physical
| Attribute | Value |
|---|---|
| Color | Black |
| Height | 3.35 in (8.5 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 20.00 in (50.8 cm) |
| Net Weight | 48.5 lb (22 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
Input
| Attribute | Value |
|---|---|
| Efficiency at full load | 50…150 V (40% load), 80…150 V |
| Input Frequency | 40 – 70 Hz auto-sensing |
Output
| Attribute | Value |
|---|---|
| Bypass type | Built-in Static Bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 2% |
| Maximum configurable power in VA | 1000 VA |
| Max Configurable Power (Watts) | 900 W |
| Wave type | Sine wave |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz |
Conformance
| Attribute | Value |
|---|---|
| Product Certifications | ENERGY STAR V2.0 (USA) |
Environmental
| Attribute | Value |
|---|---|
| Acoustic level | 50 dBA |
| Online Thermal Dissipation | 317 Btu/h |
| Operating altitude | 0…10,000 ft |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
| Ambient Air Temperature for Storage | -4…122 °F (-20…50 °C) |
| Storage altitude | 0…50,000 ft (0…15,240 m) |
| IP degree of protection | IP20 |
| Relative Humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
