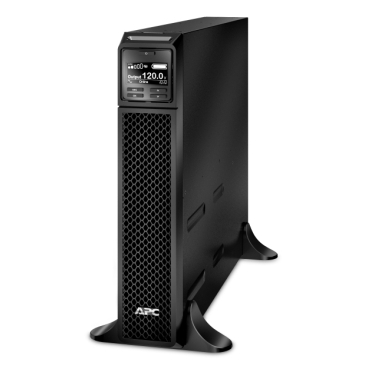

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
| Category |
Specification |
| Overview |
High density, double-conversion on-line power protection with scalable runtime |
| Lead Time |
Usually in Stock |
| Run Time for Load |
900 W, Min-max: 90-900 W, 10 min 29 s |
| Max. Capacity Used |
100% |
| Input Voltage |
120 V |
| Output Voltage |
120 V |
| Power Rating |
900 W / 1000 VA |
| Input Connection Type |
NEMA 5-15P |
| Output Connection Type |
6 × NEMA 5-15R |
| Cable Length |
6 ft (1.8 m) |
| Number of Cables |
1 |
| Provided Equipment |
CD with software, Communication Cable, Documentation CD, Installation Guide, Removable support feet, USB cable, Warranty card |
| Product Series |
Smart-UPS On-Line |
Batteries & Runtime
| Feature |
Specification |
| Run Time |
View Runtime Graph |
| Efficiency |
View Efficiency Graph |
| Battery Type |
Lead-Acid battery |
| Battery Voltage |
48V |
| Extendable Run Time |
Yes (1) |
| Included Battery Modules |
0 |
| Battery Slots Empty |
0 |
| Typical Recharge Time |
3 hours |
| RBC Quantity |
1 |
| Battery Life |
3–5 years |
| Replacement Battery |
APCRBC155 |
| Battery Charge Power |
102 W rated |
General
| Feature |
Specification |
| Power Module Filled Slots |
0 |
| Power Module Free Slots |
0 |
| Product Web Sub-family |
High density |
| Redundant |
No |
| Topology |
Double Conversion Online |
Physical
| Feature |
Specification |
| Color |
Black |
| Height |
17.01 in (43.2 cm) |
| Width |
3.35 in (8.5 cm) |
| Depth |
20.00 in (50.8 cm) |
| Net Weight |
48.5 lb (22 kg) |
| Mounting Preference |
No preference |
| Mounting Mode |
Rack-mounted with kit |
| Two Post Mountable |
No |
| USB Compatible |
Yes |
| Mounting Position |
Vertical |
Input
| Feature |
Specification |
| Efficiency at Full Load |
50…150 V (40% load), 80…150 V |
| Input Frequency |
40 – 70 Hz auto-sensing |
Output
| Feature |
Specification |
| Bypass Type |
Built-in Bypass |
| Crest Factor |
3:1 |
| Harmonic Distortion |
Less than 2% |
| Max Configurable Power |
1000 VA / 900 W |
| Wave Type |
Sine wave |
| Output Frequency (Sync to Mains) |
50/60 Hz ± 3 Hz |
Conformance
| Product Certifications | ENERGY STAR V2.0 (USA) |
Environmental
| Feature |
Specification |
| Acoustic Level |
50 dBA |
| Online Thermal Dissipation |
317 Btu/h |
| Operating Altitude |
0…10,000 ft |
| Operating Temperature |
32–104 °F (0–40 °C) |
| Storage Temperature |
-4–122 °F (-20–50 °C) |
| Storage Altitude |
0–50,000 ft (0–15,240 m) |
| IP Degree of Protection |
IP20 |
| Operating Humidity |
0–95% non-condensing |
| Storage Humidity |
0–95% non-condensing |
