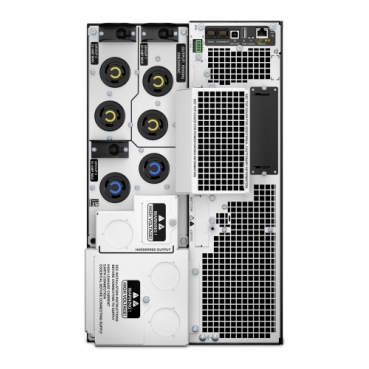

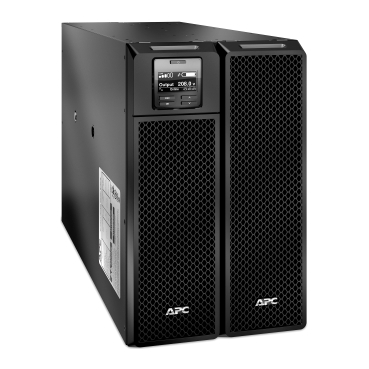

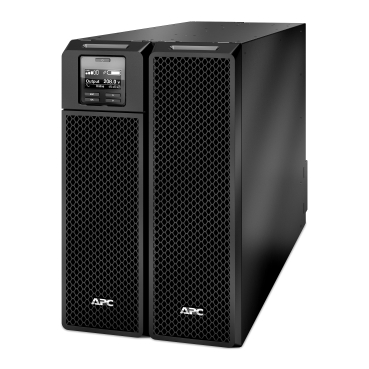

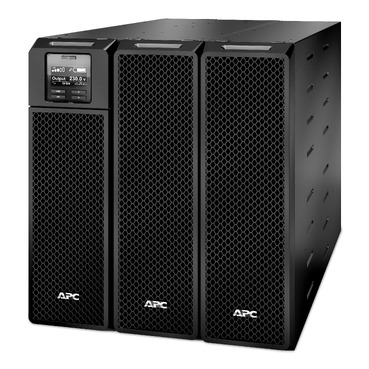

APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 208V, 4x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit [TAA]
- 10kVA/10kW double-conversion on-line pure sine wave rack/tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
- Add up to 10 external battery packs (SRT192BP2) for extended runtime
AED73,299.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
UPS Product Overview
| Category | Specification |
|---|---|
| Lead Time | Usually in Stock |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 208 V |
| Other Output Voltage | 240 V |
| kW Rating | 10000 W |
| Rated Power in VA | 10000 VA |
| Output Connection Type | 4 NEMA L6-20R, 2 NEMA L6-30R |
| Output Connector Type | Hard Wire 3-wire (2PH + G) |
| Provided Equipment | – CD with software – Documentation CD – Installation guide – Temperature Probe – USB cable – Warranty card – Web/SNMP Management Card |
| Range of Product | Smart-UPS On-Line |
Batteries & Runtime
| Category | Specification |
|---|---|
| Battery Type | Lead-Acid battery |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 0 |
| Typical Recharge Time | 1.5 hours |
| RBC Quantity | 2 |
| Battery Life | 3 to 5 years |
| Replacement Battery | APCRBC140 |
| Battery Charge Power | 1191 W rated |
| Efficiency | View Efficiency Graph (not provided) |
| Run Time | View Runtime Graph (not provided) |
General Specifications
| Category | Specification |
|---|---|
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Product Web Sub-family | TAA Compliance |
| Redundant | No |
| Topology | Double Conversion Online |
Physical Specifications
| Category | Specification |
|---|---|
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 10.35 in (26.3 cm) |
| Depth | 28.15 in (71.5 cm) |
| Net Weight | 245.99 lb (111.58 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted with kit |
| Two Post Mountable | No (0) |
| USB Compatible | Yes |
Input Specifications
| Category | Specification |
|---|---|
| Efficiency at Full Load | 100…275 V adjustable (half load) |
| Number of Input Connectors | 1 Hard Wire 3-wire (2PH + G) |
| Input Frequency | 40 – 70 Hz auto-sensing |
Output Specifications
| Category | Specification |
|---|---|
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 2% |
| Maximum Configurable Power in VA | 10000 VA |
| Maximum Configurable Power (Watts) | 10000 W |
| Wave Type | Sine wave |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz sync to mains |
Conformance & Certifications
| Certifications |
|---|
| ENERGY STAR V2.0 (USA) |
| FCC part 15 class A |
| NOM |
| TAA compliance |
| UL 1778 |
Environmental Conditions
| Category | Specification |
|---|---|
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 2490 Btu/h |
| Operating Altitude | 0–10000 ft |
| Operating Ambient Temperature | 32–104 °F (0–40 °C) |
| Storage Ambient Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50000 ft (0–15240 m) |
| IP Degree of Protection | IP20 |
| Operating Relative Humidity | 0–95% non-condensing |
| Storage Relative Humidity | 0–95% non-condensing |
