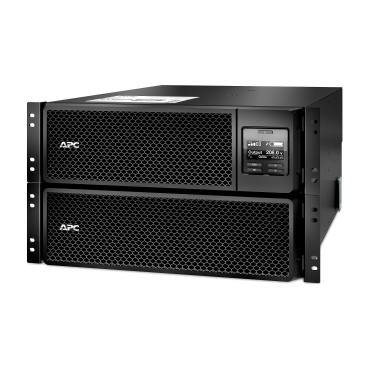

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 208V, 4x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
- 10kVA/10kW double-conversion on-line pure sine wave 6U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)

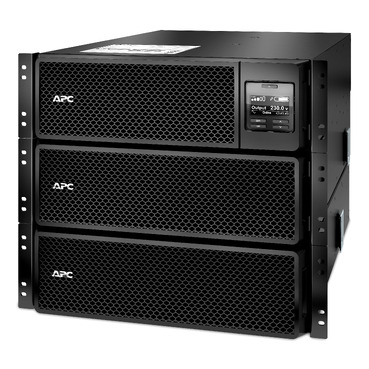

- Add up to 10 external battery packs (SRT192RMBP2) for extended runtime
AED69,699.00
his APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 2x NEMA L6-30R and 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Overview
| Attribute | Details |
|---|---|
| Presentation | High density, double-conversion on-line power protection with scalable runtime |
| Lead Time | Usually in Stock |
Main
| Attribute | Details |
|---|---|
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 208 V |
| Other Output Voltage | 240 V |
| Power Rating | 10000 W / 10000 VA |

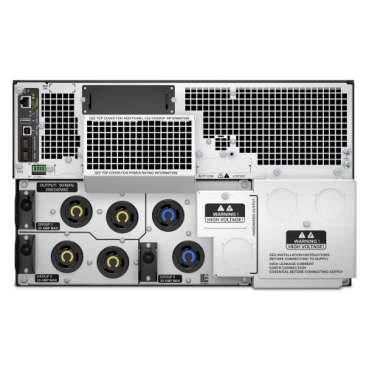

| Output Connection Types | 4 × NEMA L6-20R, 2 × NEMA L6-30R |
| Output Connector Type | 1 × Hard Wire 3-wire (2PH + G) |
| Number of Rack Units | 6U |
| Range of Product | Smart-UPS On-Line |
| Provided Equipment | CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting brackets, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card |
Batteries & Runtime
| Attribute | Details |
|---|---|
| Battery Type | Lead-Acid battery |
| Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 0 |
| Typical Recharge Time | 1.5 hours |
| RBC Quantity | 2 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC140 |
| Battery Charge Power | 1191 W rated |
| Run Time Graph | View Runtime Graph |
| Efficiency Graph | View Efficiency Graph |
General
| Attribute | Details |
|---|---|
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Web Sub-Family | High density |
| Redundant | No |
| Topology | Double Conversion Online |
Physical
| Attribute | Details |
|---|---|
| Color | Black |
| Height | 10.35 in (26.3 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 28.15 in (71.5 cm) |
| Net Weight | 245.99 lb (111.58 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No (0) |
| USB Compatible | Yes |
Input
| Attribute | Details |
|---|---|
| Efficiency at Full Load | 100–275 V adjustable (half load) |
| Number of Input Connectors | 1 × Hard Wire 3-wire (2PH + G) |
| Input Frequency | 40–70 Hz auto-sensing |
Output
| Attribute | Details |
|---|---|
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 2% |
| Max Configurable Power | 10000 W / 10000 VA |
| Wave Type | Sine wave |
| Output Frequency (Sync to Mains) | 50/60 Hz ± 3 Hz |
Conformance
| Certifications |
|---|
| ENERGY STAR V2.0 (USA) |
| FCC Part 15 Class A |
| NOM |
| UL 1778 |
Environmental
| Attribute | Details |
|---|---|
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 2490 Btu/h |
| Operating Altitude | 0–10000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50000 ft (0–15240 m) |
| IP Degree of Protection | IP20 |
| Relative Humidity (Operating/Storage) | 0–95% (non-condensing) |
