AED67,299.00

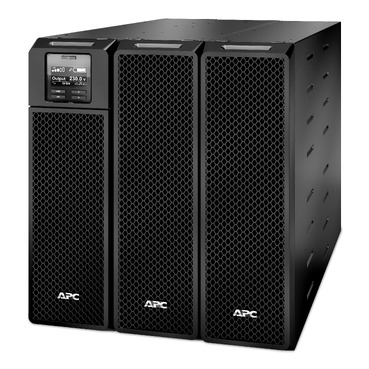

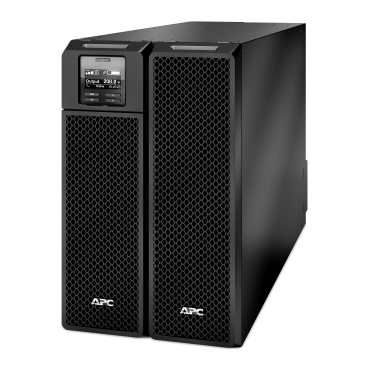

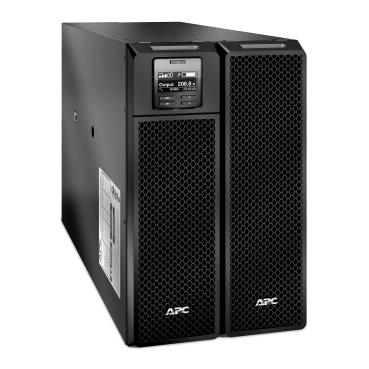

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
| Category | Specification |
|---|
| Overview |
| Lead Time | Usually in Stock |
| Main |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Smart-UPS On-Line |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 208 V |
| Other Output Voltage | 240 V |
| Power Rating | 10000 W / 10000 VA |
| Output Connection Types | 6 × IEC 60320 C13 3 × IEC Jumpers 4 × IEC 60320 C19 |
| Hardwire Output | 1 × Hard Wire 3-wire (2PH + G) |
| Input Connection Type | 1 × Hard Wire 3-wire (2PH + G) |
| Provided Equipment | CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card |
| Product Sub-family | High density |
| Redundant | No |
| Topology | Double Conversion Online |
| Batteries & Runtime |
| Battery Type | Lead-Acid battery |
| Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Extendable Runtime | Yes |
| Included Battery Modules | 0 |
| Typical Recharge Time | 1.5 h |
| RBC Quantity | 2 |
| Battery Life | 3–5 years |
| Replacement Batteries | APCRBC140, SRT192BP2US, SRT192RMBPUS |
| Battery Charge Power | 1191 W rated |
| General |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| USB Compatible | Yes |
| Physical |
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 10.35 in (26.3 cm) |
| Depth | 28.15 in (71.5 cm) |
| Net Weight | 245.99 lb (111.58 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted with kit |
| Two-Post Mountable | No |
| Input |
| Input Voltage Range | 100–275 V (adjustable at half load) |
| Input Frequency | 40–70 Hz auto-sensing |
| Output |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 2% |
| Max Configurable Power | 10000 W / 10000 VA |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
| Conformance |
| Certifications | ENERGY STAR V2.0 (USA), FCC Part 15 Class A, UL 1778 |
| Environmental |
| Acoustic Level | 55 dBA |
| Thermal Dissipation | 2490 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (–15–45 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| IP Degree of Protection | IP20 |
| Operating Humidity | 0–95% non-condensing |
| Storage Humidity | 0–95% non-condensing |
