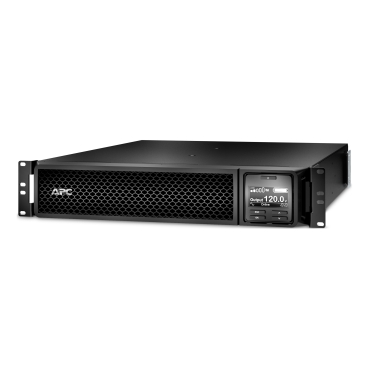

APC Smart-UPS On-Line, 1500VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartSlot, Extended runtime, W/ rail kit [TAA]

Add to Wishlist
  • 1500VA/1350W double-conversion on-line pure sine wave 2U rackmount UPS
  • Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
  • Rack/Tower convertible (rail kit included)
  • Delivers clean power with zero transfer time for critical or sensitive devices
  • Add up to 10 external battery packs (SRT48RMBP) for extended runtime

AED11,499.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SRT1500RMXLAUS Category: Tag:

Overview

Attribute Value
Lead time Usually in Stock
Run time for load 4min 37s
Max. Capacity Used 100%
Main Input Voltage 120 V
Main Output Voltage 120 V
Rated Power (W) 1350 W
Rated Power in VA 1500 VA
Min-Max Power Range 135–1350 W
Input Connection Type NEMA 5-15P
Output Connection Type 6 NEMA 5-15R
Number of Rack Units 2U
Cable Length 6 ft (1.8 m)
Number of Cables 1
Provided Equipment CD with software
Range of Product Smart-UPS On-Line
Product Type Uninterruptible Power Supply (UPS)

Batteries & Runtime

Attribute Value
Battery Type Lead-Acid battery
Battery Voltage 48 V
Extendable Run Time Yes (1)
Included Battery Modules 1
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3–5 years
Battery Charge Power 91 W rated
Run Time Graph View Runtime Graph
Efficiency Graph View Efficiency Graph

General

Attribute Value
Power Module Filled Slots 0
Power Module Free Slots 0
Product Web Sub-family High density
Redundant No
Topology Double Conversion Online

Physical

Attribute Value
Color Black
Height 3.35 in (8.5 cm)
Width 17.01 in (43.2 cm)
Depth 20.00 in (50.8 cm)
Weight 48.5 lb (22 kg)
Mounting Location Front
Mounting Preference No preference
Mounting Mode Rack-mounted
Mounting Position Horizontal
Two Post Mountable 0
USB Compatible Yes

Input

Attribute Value
Input Efficiency at Full Load 90–150 V
Input Frequency 47–70 Hz auto-sensing

Output

Attribute Value
Bypass Type Built-in Bypass
Crest Factor 3:1
Harmonic Distortion < 2%
Max Configurable Power (VA) 1500 VA
Max Configurable Power (W) 1350 W
Waveform Type Sine wave
Output Frequency 50/60 Hz ± 3 Hz (sync to mains)

Conformance

Attribute Value
Product Certifications ENERGY STAR V2.0 (USA)
TAA Compliance Yes

Environmental

Attribute Value
Acoustic Level 50 dBA
Online Thermal Dissipation 463 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature -4–122 °F (-20–50 °C)
Storage Altitude 0–50,000 ft
IP Degree of Protection IP20
Relative Humidity (Operating) 0–95% non-condensing
Relative Humidity (Storage) 0–95% non-condensing
