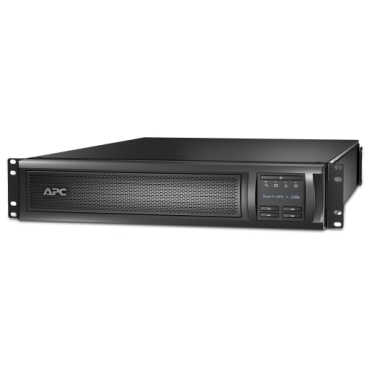

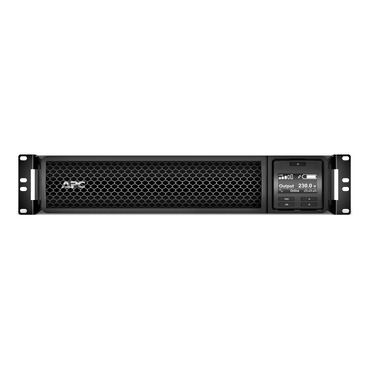

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Add to Wishlist
  • 3kVA/2.7kW double-conversion on-line pure sine wave 2U rackmount UPS
  • Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
  • Rack/Tower convertible (rail kit included)
  • Delivers clean power with zero transfer time for critical or sensitive devices
  • Add up to 10 external battery packs (SRT96RMBP) for extended runtime

AED27,499.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms

SKU: SRT3000RMXLW-IEC Category: Tag:

Overview

Feature Description
Presentation High density, double-conversion on-line power protection with scalable runtime
Lead Time Usually in Stock

Main

Product Type Uninterruptible Power Supply (UPS)
Range of Product Smart-UPS On-Line
Main Input Voltage 208 V / 230 V
Other Input Voltage 220 V / 240 V
Main Output Voltage 208 V / 230 V
Other Output Voltage 220 V / 240 V
kW Rating 2700 W
Rated Power (VA) 3000 VA
Input Connection Types BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Output Connection Types 6 × IEC 60320 C13, 2 × IEC Jumpers, 2 × IEC 60320 C19
Rack Units 2U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Provided Equipment CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack Mounting support rails, USB cable, Warranty card

Batteries & Runtime

Battery Type Lead-Acid battery
Battery Voltage 96V
Extendable Run Time Yes (1)
Included Battery Modules 1
Typical Recharge Time 3 hours
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery APCRBC152
Battery Charge Power 168 W rated

General

Filled Power Module Slots 0
Free Power Module Slots 0
Web Sub-Family High density
Redundant No
Topology Double Conversion Online

Physical

Color Black
Height 3.35 in (8.5 cm)
Width 17.01 in (43.2 cm)
Depth 25.00 in (63.5 cm)
Net Weight 69.005 lb (31.3 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Mounting Position Horizontal
Two-Post Mountable No (0)
USB Compatible Yes

Input

Efficiency Voltage Range 100–275 V adjustable (half load)
Input Frequency 40–70 Hz auto-sensing

Output

Bypass Type Internal Bypass (Auto & Manual)
Crest Factor 3:1
Harmonic Distortion Less than 2%
Max Configurable Power (VA) 3000 VA
Max Configurable Power (Watts) 2700 W
Wave Type Sine wave
Output Frequency (sync) 50/60 Hz ± 3 Hz (sync to mains)
Additional Info Configurable for 220, 230, or 240 V output

Conformance

Certifications CE, EAC, ENERGY STAR V2.0 (USA), RCM, VDE, UK PSTI
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Environmental

Acoustic Level 55 dBA
Thermal Dissipation (Online) 703 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft
IP Protection Rating IP20
Relative Humidity (Op/Storage) 0–95% non-condensing
