UPS , Power Back up and accessories

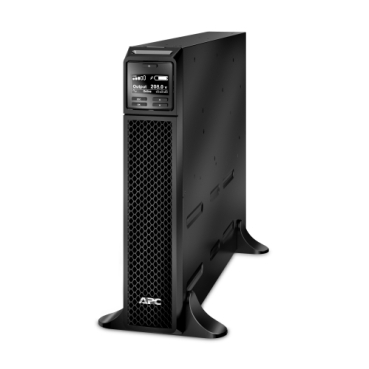

APC Smart-UPS On-Line, 3kVA, Tower, 208V, 2x L6-20R+1x L6-30R NEMA outlets, SmartSlot, Extended runtime, W/O rail kit
- 3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
AED25,399.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input and 2x NEMA L6-20R and 1x NEMA L6-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
| Category | Specification |
|---|
| Overview |
| Lead time | Usually in Stock |
| Main |
| Main Input Voltage | 208 V |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 240 V |
| Main Output Voltage | 208 V |
| Other Output Voltage | 240 V |
| Kw Rating | 2700 W |
| Rated Power in VA | 3000 VA |
| Input Connection Type | NEMA L6-20P |

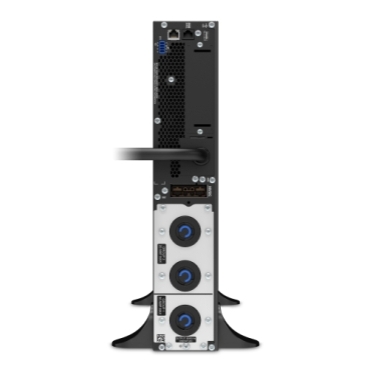

| Output Connection Type | 2 NEMA L6-20R, 1 NEMA L6-30R |
| Cable Length | 10 ft (3.05 m) |
| Number of Cables | 1 |
| Provided Equipment | CD with software, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card |
| Range of Product | Smart-UPS On-Line |
| Batteries & Runtime |
| Run Time | View Runtime Graph (action_new_window) |
| Efficiency | View Efficiency Graph (action_new_window) |
| Battery Type | Lead-Acid battery |
| Battery Voltage | 96 V |
| Extendable Run Time | 1 |
| Included Battery Modules | 1 |
| Typical Recharge Time | 3 h |
| RBC Quantity | 1 |
| Battery Life | 3…5 year(s) |
| Replacement Battery | APCRBC152 (action_new_window) |
| Battery Charge Power (Watts) | 165 W rated |
| General |
| Number of Power Module Filled Slots | 0 |
| Number of Power Module Free Slots | 0 |
| Product Web Sub-family | High density |
| Redundant | No |
| Topology | Double Conversion Online |
| Physical |
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 3.35 in (8.5 cm) |
| Depth | 25.00 in (63.5 cm) |
| Net Weight | 69.005 lb (31.3 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted with kit |
| Two Post Mountable | 0 |
| USB Compatible | Yes |
| Mounting Position | Vertical |
| Input |
| Efficiency at Full Load | 100…275 V adjustable (half load) |
| Input Frequency | 40 – 70 Hz auto-sensing |
| Output |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3 : 1 |
| Harmonic Distortion | Less than 2% |
| Maximum Configurable Power in VA | 3000 VA |
| Max Configurable Power (Watts) | 2700 W |
| Wave Type | Sine wave |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz sync to mains |
| Additional Information | Configurable for 208 or 240 nominal output voltage |
| Conformance |
| Product Certifications | ENERGY STAR V2.0 (USA) |
| Environmental |
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 773 Btu/h |
| Operating Altitude | 0…10000 ft |
| Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) |
| Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
| Storage Altitude | 0…50000 ft (0…15240 m) |
| IP Degree of Protection | IP20 |
| Relative Humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
