UPS , Power Back up and accessories

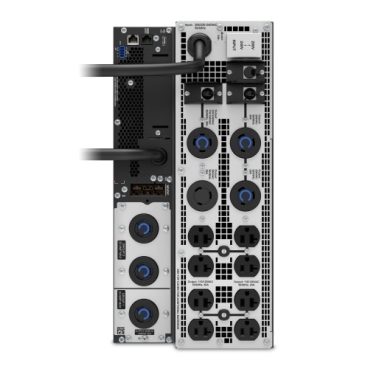

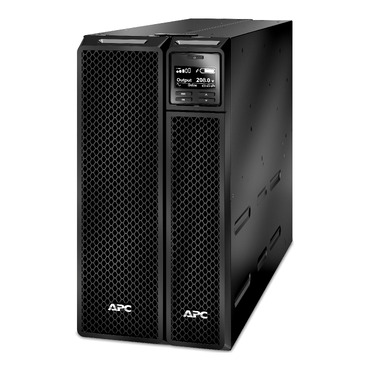

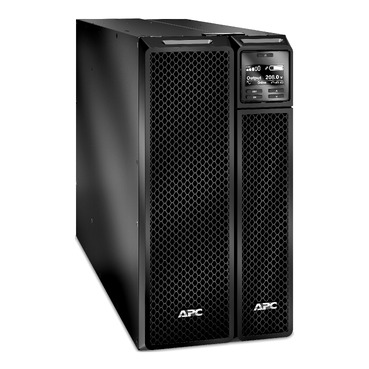

APC Smart-UPS On-Line, 3kVA, Tower, 208V, 8x 5-20R+4x L6-20R+1x L6-30R+1x L14-30R NEMA, SmartSlot, W/ transformer 208V to 120V, W/O rail kit
- 3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
AED32,299.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 4x L6-20R, 8x 5-20R, 1x L14-30R, and 1x L6-30R NEMA outlets. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Product Overview
| Attribute | Details |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Smart-UPS On-Line |
| Sub-Family | High Density |
| Redundant | No |
| Topology | Double Conversion Online |
Power & Electrical Specifications
| Attribute | Details |
|---|---|
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 120 V, 208 V |
| Other Output Voltage | 240 V |
| Input Frequency | 40 – 70 Hz auto-sensing |
| Input Connection Type | NEMA L6-20P |
| Output Connection Types | 8 x NEMA 5-20R, 4 x NEMA L6-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz |
| Efficiency Range at Full Load | 100–275 V adjustable (half load) |
| Wave Type | Sine wave |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 2% |
| Max Configurable Power (Watts) | 2700 W |
| Max Configurable Power (VA) | 3000 VA |
| Rated Power (Watts) | 2700 W |
| Rated Power (VA) | 3000 VA |
| Additional Info | Configurable for 208 or 240 V output |
Battery & Runtime
| Attribute | Details |
|---|---|
| Battery Type | Lead-Acid |
| Battery Voltage | 96 V |
| Extendable Run Time | Yes (1 supported) |
| Included Battery Modules | 1 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| Replacement Battery | APCRBC152 |
| Battery Charge Power | 165 W (rated) |
| Battery Life | 3–5 years |
| Runtime Graph / Efficiency Graph | Available |
Physical Specifications
| Attribute | Details |
|---|---|
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 6.69 in (17 cm) |
| Depth | 25.00 in (63.5 cm) |
| Net Weight | 194.007 lb (88 kg) |
| Mounting Mode | Rack-mounted with kit |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Position | Vertical |
| Number of Rack Units | Not explicitly stated |
| Two-Post Mountable | No |
| USB Compatible | Yes |
| Cable Length | 10 ft (3.05 m) |
| Number of Cables | 1 |
Included Equipment
| Attribute | Included Items |
|---|---|
| Provided Equipment | CD with software, Documentation CD, Installation Guide, Removable Support Feet, USB Cable, Warranty Card |
Environmental Specifications
| Attribute | Details |
|---|---|
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 773 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Operating Temp Range | 32–104 °F (0–40 °C) |
| Storage Temp Range | 5–113 °F (-15–45 °C) |
| Relative Humidity (Operating) | 0–95% non-condensing |
| Relative Humidity (Storage) | 0–95% non-condensing |
| IP Degree of Protection | IP20 |
Certifications
| Attribute | Details |
|---|---|
| Product Certifications | ENERGY STAR V2.0 (USA) |
There are no reviews yet.
