04 3550600 052 7036860

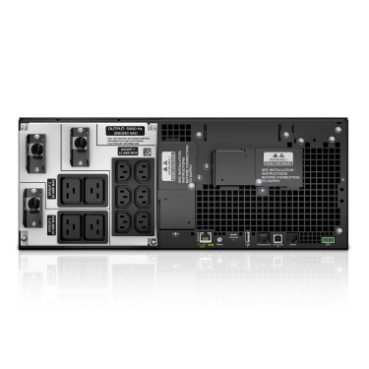

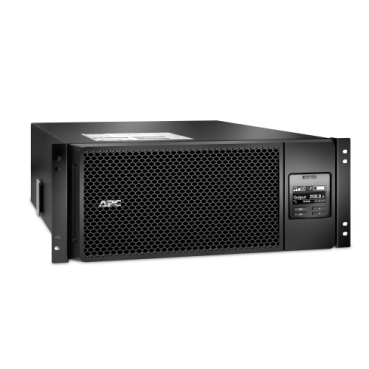

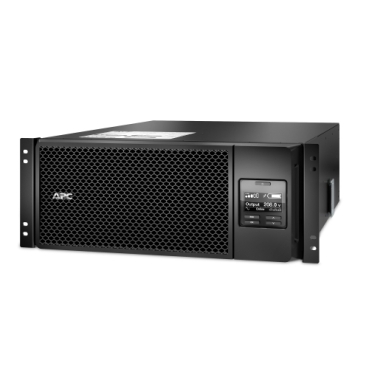

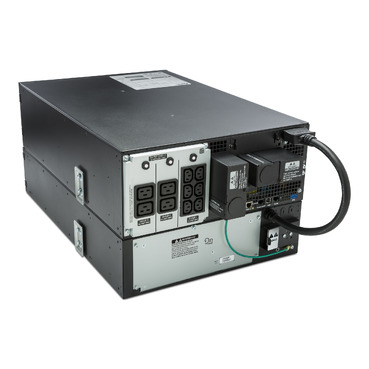

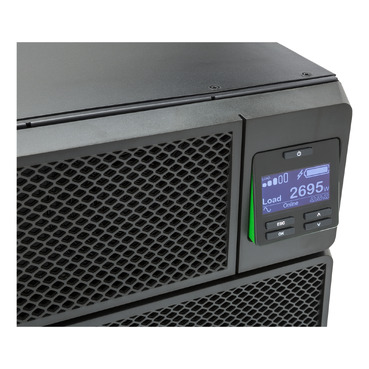

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 208V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

Add to Wishlist
  • 6kVA/6kW double-conversion on-line pure sine wave 4U rackmount UPS
  • Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
  • Rack/Tower convertible (rail kit included)
  • Add up to 10 external battery packs (SRT192RMBP) for extended runtime

AED52,599.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SRT6KRMXLT-IEC Category: Tag:

Overview

Attribute Details
Lead Time Usually in Stock
Product Type Uninterruptible Power Supply (UPS)
Range of Product Smart-UPS On-Line

Input & Output

Attribute Details
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
kW Rating 6000 W
Rated Power (VA) 6000 VA
Output Connection Type 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Output Connector Type Hard Wire 3-wire (2PH + G)
Number of Rack Units 4U

Provided Equipment

Items Included
CD with software
Documentation CD
Installation guide
Rack mounting hardware
Rack Mounting brackets
Rack Mounting support rails
Temperature Probe
USB cable
Warranty card
Web/SNMP Management Card

Batteries & Runtime

Attribute Details
Battery Type Lead-Acid battery
Battery Voltage 192 V
Extendable Run Time Yes
Included Battery Modules 0
Typical Recharge Time 1 hour
RBC Quantity 1
Battery Life 3 to 5 years
Replacement Battery APCRBC140
Battery Charge Power 866 W rated

General Specifications

Attribute Details
Number of Power Module Filled Slots 0
Number of Power Module Free Slots 0
Product Web Sub-family High density
Redundant No
Topology Double Conversion Online

Physical

Attribute Details
Color Black
Height 6.85 in (17.4 cm)
Width 17.01 in (43.2 cm)
Depth 28.31 in (71.9 cm)
Net Weight 134.99 lb (61.23 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two-post Mountable No
USB Compatible Yes
Mounting Position Horizontal

Input

Attribute Details
Efficiency at Full Load 100…275 V adjustable (half load)
Number of Input Connectors 1 Hard Wire 3-wire (2PH + G)
Input Frequency 40 – 70 Hz auto-sensing

Output

Attribute Details
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion Less than 2%
Maximum Configurable Power (VA) 6000 VA
Maximum Configurable Power (W) 6000 W
Wave Type Sine wave
Output Frequency (sync to mains) 50/60 Hz ± 3 Hz

Conformance

Certifications
ENERGY STAR V2.0 (USA)
FCC Part 15 Class A
UL 1778
TAA Compliance

Environmental

Attribute Details
Acoustic Level 55 dBA
Online Thermal Dissipation 1402 Btu/h
Operating Altitude 0–10000 ft
Ambient Air Temperature (Operation) 32–104 °F (0–40 °C)
Ambient Air Temperature (Storage) 5–113 °F (-15–45 °C)
Storage Altitude 0–50000 ft (0–15240 m)
IP Degree of Protection IP20
Relative Humidity (Operating) 0–95 % non-condensing
Relative Humidity (Storage) 0–95 % non-condensing
