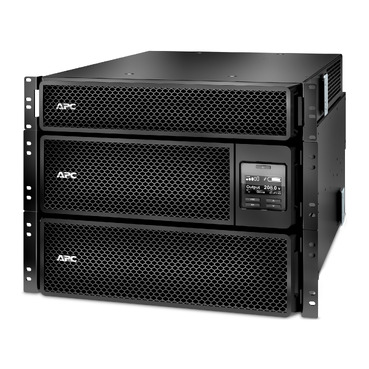

APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 8U, 208V, 12x 5-20R+4x L6-20R+1x L6-30R NEMA, Network Card+SmartSlot, W/transformer 208V to 120V,W/rail kit

8kVA/8kW double-conversion on-line pure sine wave 8U rackmount UPS

Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications

Rack/Tower convertible (rail kit included)

Add up to 10 external battery packs (SRT192RMBP2) for extended runtime

AED65,499.00

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line 8U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 12x NEMA 5-20R, 1x NEMA L6-30R, 4x NEMA L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SRT8KRMXLT-5KTF Category: UPS , Power Back up and accessories Tag: SRT8KRMXLT-5KTF

Overview

Attribute	Value
Lead Time	Usually in Stock

Main

Attribute	Value
Run Time for Load	8000 W (Min–Max: 800–8000 W) — 5 min 10 s
Max Capacity Used	100%
Main Input Voltage	208 V
Main Output Voltage	120 V
Product Type	Uninterruptible Power Supply (UPS)
kW Rating	8000 W
Rated Power (VA)	8000 VA

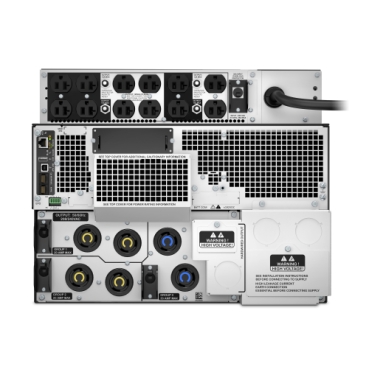

Output Connection Types	12 × NEMA 5-20R 4 × NEMA L6-20R 1 × NEMA L6-30R
Output Connector Type	1 × Hard Wire 3-wire (2PH + G)
Number of Rack Units	8U
Provided Equipment	CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP Management Card
Product Range	Smart-UPS On-Line

Batteries & Runtime

Attribute	Value
Battery Type	Lead-Acid battery
Battery Voltage	±192 V (split battery referenced to neutral)
Extendable Run Time	Yes
Included Battery Modules	0
Typical Recharge Time	1.5 hours
RBC Quantity	1
Battery Life	3–5 years
Replacement Battery	APCRBC140
Battery Charge Power	1136 W rated

General

Attribute	Value
Number of Power Module Slots (Filled)	0
Number of Power Module Slots (Free)	0
Web Sub-family	High density
Redundant	No
Topology	Double Conversion Online

Physical

Attribute	Value
Color	Black
Height	13.86 in (35.2 cm)
Width	17.01 in (43.2 cm)
Depth	28.15 in (71.5 cm)
Net Weight	340.99 lb (154.67 kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-mounted
Mounting Position	Horizontal
Two Post Mountable	No
USB Compatible	Yes

Input

Attribute	Value
Efficiency at Full Load	100–275 V adjustable (half load)
Number of Input Connectors	1 × Hard Wire 3-wire (2PH + G)
Input Frequency	40–70 Hz auto-sensing

Output

Attribute	Value
Bypass Type	Internal Bypass (Automatic & Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Max Configurable Power (VA)	8000 VA
Max Configurable Power (Watts)	8000 W
Wave Type	Sine wave
Output Frequency (sync to mains)	50/60 Hz ±3 Hz

Conformance

Certifications
ENERGY STAR V2.0 (USA)
FCC Part 15 Class A
UL 1778

Environmental

Attribute	Value
Acoustic Level	55 dBA
Online Thermal Dissipation	1712 Btu/h
Operating Altitude	0–10000 ft
Operating Temperature	32–104 °F (0–40 °C)
Storage Temperature	5–113 °F (−15–45 °C)
Storage Altitude	0–50000 ft (0–15240 m)
IP Degree of Protection	IP20
Relative Humidity (Operating/Storage)	0–95% non-condensing
