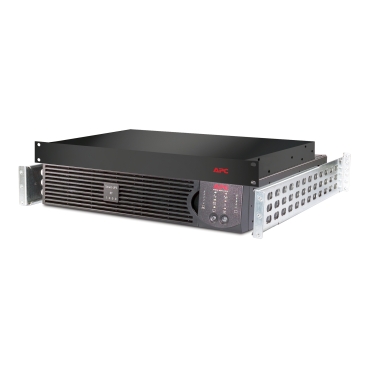

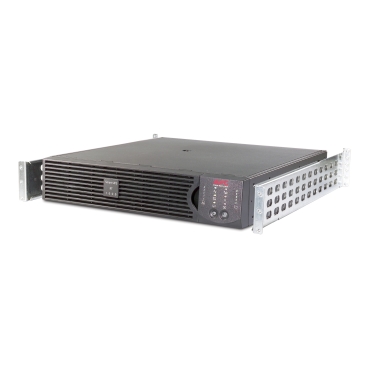

APC Smart-UPS RT 1000VA 230V – Marine

Add to Wishlist
  • Ideal for providing uninterrupted power in critical marine applications
  • DNV type approved
  • Hot-swappable, front-accessible, user replaceable batteries
  • Frequency Conversion Function 50Hz to 60Hz
  • Operating temperature up to 55°C

AED9,799.00

Add to Wishlist

The APC Smart-UPS RT is an online UPS with a power rating of 1000VA and output power capacity of 700 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as IEC 60320 and IEC Jumpers. This model is includes a lead-acid battery and is suitable for marine applications. The UPS features double conversion online technology and sine wave output.

SKU: SURT1000XLIM Category: Tag:

UPS Product Specification Table

Category Specification
Overview High availability, ruggedized power protection for shipboard and transportation applications
Lead Time Usually in Stock
Run Time for Load 700 W (Min-Max: 70–700 W), 13 min 49 s
Max Capacity Used 100%
Main Input Voltage 230 V
Other Input Voltages 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltages 220 V, 240 V
kW Rating 700 W
Rated Power (VA) 1000 VA
Input Connection Type IEC 60320 C14

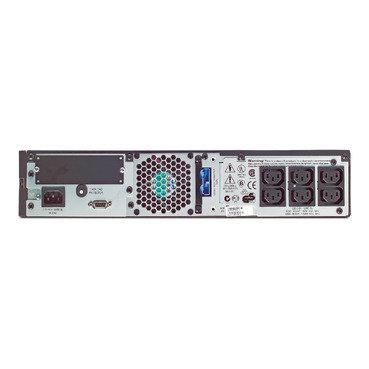

Output Connection Types 6 × IEC 60320, 2 × IEC Jumpers
Number of Rack Units 2U
Cable Length 8.2 ft (2.5 m)
Number of Cables 1
Provided Equipment CD with software, Relay board, Smart UPS signalling RS-232 cable, User Manual

Battery & Runtime

Feature Specification
Battery Type Lead-Acid battery
Extendable Runtime Yes (1)
Included Battery Modules 1
Empty Battery Slots 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery RBC31
Battery Charge Power 109 W rated

General Information

Feature Specification
Number of Power Modules 700
Filled Power Module Slots 0
Free Power Module Slots 0
Redundant No
Variant Option Shipboard
Topology Double Conversion Online

Physical Characteristics

Feature Specification
Color Black
Height 17.01 in (43.2 cm)
Width 3.35 in (8.5 cm)
Depth 19.02 in (48.3 cm)
Weight 50.7 lb (23 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two-Post Mountable No
USB Compatible No

Input Specifications

Feature Specification
Input Power Factor (Full Load) 1
Efficiency (Full Load) 180–280 V
Input Frequency 50/60 Hz ±5 Hz (auto-sensing)

Output Specifications

Feature Specification
Bypass Type Built-in Bypass
Crest Factor 3:1
Harmonic Distortion < 3%
Max Configurable Power (VA) 1000 VA
Max Configurable Power (W) 700 W
Waveform Type Sine wave
Efficiency (Full Load) 88%
Output Frequency 50/60 Hz ±3 Hz (user adjustable), ±0.1% (sync to mains or nominal unsynced)
Additional Output Info Configurable for 220, 230, or 240 V nominal output

Conformance

Certifications CE, DNV, KCC
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Environmental Specifications

Feature Specification
Acoustic Level 55 dBA
Thermal Dissipation (Online) 324 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–131 °F (0–55 °C)
Storage Temperature -4–122 °F (-20–50 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
IP Protection IP20
Relative Humidity (Operating & Storage) 0–95% non-condensing
