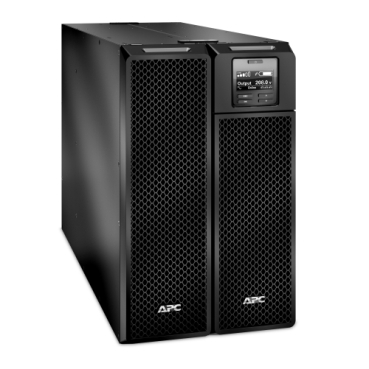

APC Smart-UPS SRT 5kVA, 208V, Tower w/o kit, 8x 5-20R, 4x L6-20R, 2x L6-30R, 1x L14-30R NEMA, w/transfo 208/240V to 120V

Add to Wishlist
  • 10000VA/9000W double conversion On-line pure sine wave 2U rackmount UPS
  • Ideal for servers, voice/data networks, medical labs, and light industrial applications.
  • Input- Hard wire 3-wire/5-wire, Output- Hard wire 3-wire
  • Automatic Voltage Regulation (AVR) corrects utility voltage

AED48,499.00

Add to Wishlist

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4800W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input, 8x NEMA 5-20R, 1x NEMA L14-30R, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It Its dimensions are 719mm (depth) x 432mm (height) x 259mm (width) and weighs 112.49kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

SKU: SRT5KXLT-5KTF Category: Tag:

UPS Specification Table

Category Specification
Overview
Lead Time Usually in Stock
Main
Main Input Voltage 208 V
Other Input Voltage 240 V
Product Type Uninterruptible Power Supply (UPS)
Main Output Voltage 120 V, 208 V
Other Output Voltage 240 V
kW Rating 4800 W
Rated Power in VA 5000 VA
Input Connection Type NEMA L6-30P
Output Connection Types 8 NEMA 5-20R, 4 NEMA L6-20R, 2 NEMA L6-30R, 1 NEMA L14-30R
Cable Length 10 ft (3.05 m)
Provided Equipment CD with software, Documentation CD, Installation guide, Integrated network management, Removable support feet, Temperature Probe
Range of Product Smart-UPS On-Line
Batteries & Runtime
Battery Type Lead-Acid battery
Battery Voltage 192 V
Extendable Run Time Yes (1)
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 1.5 hours
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery APCRBC140
Battery Charge Power 556 W rated
General
Number of Power Module Slots (Filled) 0
Number of Power Module Slots (Free) 0
Product Web Sub-Family High density
Redundant No
Topology Double Conversion Online
Physical
Color Black
Height 17.01 in (43.2 cm)
Width 10.20 in (25.9 cm)
Depth 28.31 in (71.9 cm)
Net Weight 248.00 lb (112.49 kg)
Mounting Preference No preference
Mounting Mode Rack-mounted with kit
Two-Post Mountable No
USB Compatible Yes
Mounting Position Vertical
Input
Input Voltage Range (Efficiency) 100–275 V adjustable (half load)
Input Frequency 40–70 Hz auto-sensing
Output
Bypass Type Internal Bypass (Automatic and Manual)
Harmonic Distortion Less than 2%
Max Configurable Power (VA) 5000 VA
Max Configurable Power (W) 4800 W
Wave Type Sine wave
Output Frequency 50/60 Hz ±3 Hz sync to mains
Conformance
Product Certifications ENERGY STAR V2.0 (USA)
Environmental
Acoustic Level 55 dBA
Online Thermal Dissipation 1047 Btu/h
Operating Altitude 0–10000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50000 ft (0–15240 m)
IP Degree of Protection IP20
Relative Humidity (Op/Store) 0–95% non-condensing
