UPS , Power Back up and accessories

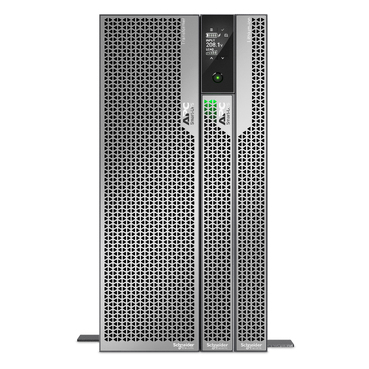

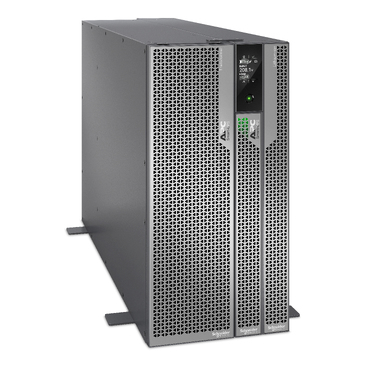

APC Smart-UPS Ultra 5000VA, 208/240V, Tower w/o kit, 8x 5-20R & 4x L6-20R & 3x L6-30R & 1x L14-30R NEMA outlets, w/transfo 208/240V to 120/208/240V
- Smart-UPS Ultra 5kW UPS & stepdown transformer
- 2U UPS and 3U height stepdown transformer
- Provides 120V output for 208V UPS
- (2) L6-30R (1)L5-13R (2)5-20R
AED73,899.00

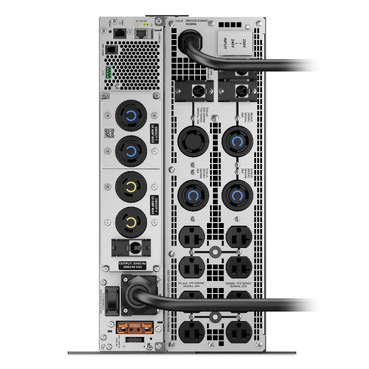

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R
UPS Product Specification Table
| Category | Parameter | Value |
|---|---|---|
| Overview | Lead Time | Usually in Stock |
| Main | Run Time for Load | 4900 W (Min-max: 490–4900 W, 5 min 35 s) |
| Max. Capacity Used | 100% | |
| Main Input Voltage | 208 V | |
| Other Input Voltage | 240 V | |
| Main Output Voltage | 120 V | |
| Other Output Voltage | 240 V | |
| kW Rating | 4900 W | |
| Rated Power in VA | 4900 VA | |
| Input Connection Type | NEMA L6-30P | |
| Output Connection Type | 8 NEMA 5-20R, 1 NEMA L14-30R, 3 NEMA L6-30R, 4 NEMA L6-20R | |
| Cable Length | 10 ft (3.05 m) | |
| Provided Equipment | 1 CD (software and documentation) | |
| Range of Product | Smart-UPS Ultra | |
| Batteries & Runtime | Battery Type | Li-Ion (Lithium Ion) |
| Battery Voltage | 180 V | |
| Extendable Run Time | 1 | |
| Included Battery Modules | 0 | |
| Battery Slots Empty | 0 | |
| Typical Recharge Time | 1.5 h | |
| RBC Quantity | 1 | |
| Battery Life | 5–10 years | |
| Battery Charge Power | 600 W rated | |
| Run Time Graph | View Runtime Graph | |
| Efficiency Graph | View Efficiency Graph | |
| General | Filled Power Module Slots | 0 |
| Free Power Module Slots | 0 | |
| Product Web Sub-family | High density | |
| Redundant | No | |
| Topology | Double Conversion Online | |
| Physical | Color | Silver grey |
| Height | 17.13 in (43.5 cm) | |
| Width | 8.66 in (22 cm) | |
| Depth | 28.31 in (71.9 cm) | |
| Product Weight | 189.4 lb (85.9 kg) | |
| Mounting Preference | No preference | |
| Two Post Mountable | 0 | |
| USB Compatible | Yes | |
| Mounting Position | Vertical | |
| Input | Efficiency at Full Load | 100–275 V adjustable (half load) |
| Input Frequency | 40–70 Hz auto-sensing | |
| Output | Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 | |
| Harmonic Distortion | Less than 2% | |
| Max Configurable Power (VA) | 4900 VA | |
| Max Configurable Power (Watts) | 4900 W | |
| Waveform Type | Sine wave | |
| Full Load Runtime | 00:05:00 (4900 W) | |
| Half Load Runtime | 00:12:00 (2450 W) | |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) | |
| Conformance | Product Certifications | ENERGY STAR V2.0 (USA) |
| Environmental | Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 1047 Btu/h | |
| Operating Altitude | 0–10,000 ft | |
| Operating Temperature | 32–104 °F (0–40 °C) | |
| Storage Temperature | 5–113 °F (-15–45 °C) | |
| Storage Altitude | 0–50,000 ft (0–15,240 m) | |
| IP Degree of Protection | IP20 | |
| Relative Humidity (Operating & Storage) | 0–95% non-condensing |
