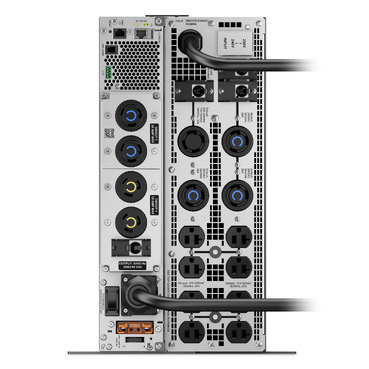

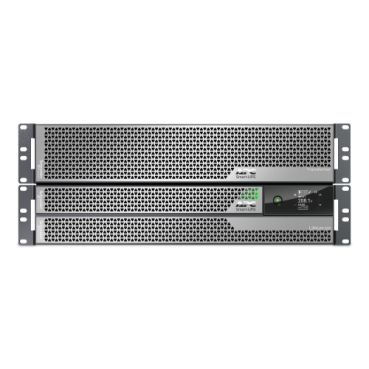

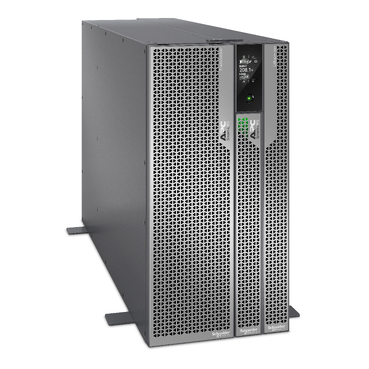

APC Smart-UPS Ultra, 5kVA, Rackmount 4U, 208V, 12x 5-20R+2x L6-20R+1x L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V

Add to Wishlist
  • Smart-UPS Ultra 5kW UPS & stepdown transformer
  • 2U UPS and 2U height stepdown transformer
  • Provides 120V output for 208V UPS

AED73,299.00

Add to Wishlist

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker

SKU: SRTL5KRM2UT-5KRMTF Category: Tag:

UPS Product Specification Table

Category Parameter Value
Overview Lead Time Usually in Stock
Main Run Time for Load 4900 W (Min–Max: 490–4900 W), 5 min 35 s
Max. Capacity Used 100%
Product or Component Type Uninterruptible power supply (UPS)
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 120 V
Other Output Voltage 240 V
kW Rating 4900 W
Rated Power in VA 4900 VA
Input Connection Type NEMA L6-30P
Output Connection Type 12 NEMA 5-20R, 2 NEMA L6-20R, 2 NEMA L6-30R
Number of Rack Units 4U
Cable Length 10 ft (3.05 m)
Number of Cables 1
Provided Equipment Rack Mounting Brackets, Stabilization Feet, Rack Mounting Support Rails, USB Cable, Temperature Probe, Strain Relief, Battery
Range of Product Smart-UPS Ultra
Batteries & Runtime Run Time Graph View Runtime Graph
Efficiency Graph View Efficiency Graph
Battery Type Li-Ion (Lithium Ion)
Battery Voltage 180 V
Extendable Run Time 1
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 1.5 h
RBC Quantity 1
Battery Life 8–10 years
Battery Charge Power 600 W rated
General Filled Power Module Slots 0
Free Power Module Slots 0
Product Web Sub-family High Density
Redundant No
Topology On-Line
Physical Color Black
Height 6.93 in (17.6 cm)
Width 17.01 in (43.2 cm)
Depth 28.31 in (71.9 cm)
Product Weight 159.37 lb (72.29 kg)
Mounting Location Front
Mounting Preference No Preference
Mounting Mode Rack-mounted
Two Post Mountable 0
USB Compatible Yes
Mounting Position Horizontal
Input Efficiency at Full Load 100–275 V adjustable (half load)
Input Frequency 40–70 Hz auto-sensing
Output Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion Less than 2%
Max Configurable Power (VA) 4900 VA
Max Configurable Power (Watts) 4900 W
Waveform Type Sine wave
Full Load Runtime 4900 W
Half Load Runtime 2450 W
Output Frequency 50/60 Hz ± 3 Hz (sync to mains)
Conformance Product Certifications ENERGY STAR V2.0 (USA)
Environmental Acoustic Level 55 dBA
Online Thermal Dissipation 1047 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
IP Degree of Protection IP20
Relative Humidity (Operating & Storage) 0–95% non-condensing
