UPS , Power Back up and accessories
APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 208/230V, 3x C13, 2x C19 IEC outlets, SmartConnect, Extended runtime, W/rail kit

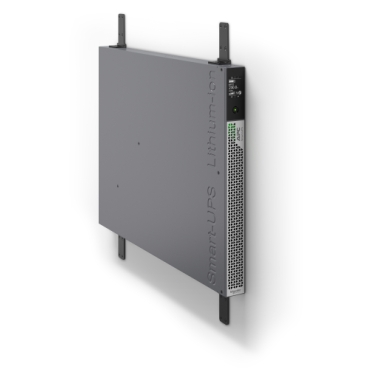

- 1U, 2200VA/2200W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
- 230V and 208V user selectable output.
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready SmartConnect. Connects to EcoStruxure IT for remote monitoring and management
AED27,799.00
With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
| Category | Attribute | Value |
|---|
| Overview | Lead Time | Usually in Stock |
| Main | Main Input Voltage | 208…240 V AC |
| Other Input Voltage | 208…240 V |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Main Output Voltage | 208…240 V AC |
| Other Output Voltage | 208…240 V |
| kW Rating | 2200 W |
| Rated Power (VA) | 2200 VA |
| Input Connection Type | BS1363A British |
| Output Connection Type | 3 IEC 320 C13, 2 IEC 320 C19 |
| Number of Rack Unit | 1U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Battery Type | Li-Ion (Lithium Ion) |
| Provided Equipment | RJ45 Cable, Rack Mounting brackets, Network cable, Terminal, Stabilization feet, Safety guide, Rail extension, Washer, USB cable, Screws |
| Range of Product | Smart-UPS Ultra |
| Complementary | Software Package | SmartConnect software for remote power monitoring (feature availability varies by terms of use) |
| Batteries & Runtime | Run Time | View Runtime Graph |
| Typical Recharge Time | 1.5 h |
| RBC Quantity | 1 |
| Battery Voltage | 50 V |
| Battery Charge Power (Watts) | 448 W rated |
| Battery Design Life | 8–10 year(s) |
| Battery Life | 8–10 year(s) |
| Replacement Battery | APCRBC173-LI |
| Extendable Run Time | Yes (1) |
| General | Product Web Sub-family | High density |
| Redundant | No |
| Physical | Color | Silver grey |
| Height | 1.7 in (43 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 22.05 in (560 mm) |
| Net Weight | 35.05 lb (15.9 kg) |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted with kit |
| Two Post Mountable | Yes (1) |
| USB Compatible | Yes |
| Mounting Position | Horizontal, Vertical |
| Input | Input Frequency | 50/60 Hz auto-sensing |
| Efficiency at Full Load | 160–275 V adjustable (208…240 V AC) |
| Output | Max Configurable Power (Watts) | 2200 W |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz |
| Crest Factor | 3:1 |
| Topology | On-Line |
| Wave Type | Sine wave |
| Output Voltage THD | < 2% at 100% linear load, < 5% at 100% non-linear load |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Efficiency at Full Load | 97% |
| Maximum Configurable Power (VA) | 2200 VA |
| Conformance | Product Certifications | CE, EAC, RCM, VDE, UKCA, UK PSTI |
| Marking | CE Mark |
| Standards | EN/IEC 62040-1, FCC CFR 47 part 15 class A, IEC 62040-2, EN/IEC 61000-4-8, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-5 level 3, EN/IEC 61000-4-4 level 4 |
| Environmental | Ambient Air Temperature (Operation) | 32–104 °F (0–40 °C) |
| Relative Humidity | 0–95% non-condensing |
| Operating Altitude | 0–10,000 ft |
| Ambient Air Temperature (Storage) | 5–113 °F (-15–45 °C) |
| Storage Relative Humidity | 0–95% non-condensing |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Acoustic Level | 55 dB |
| Online Thermal Dissipation | 325 Btu/h |
| IP Degree of Protection | IP20 |
