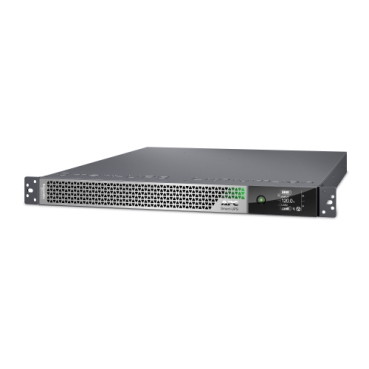

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R, 1x L5-30R NEMA outlets, SmartConnect, Extended runtime, W/rail kit
- 3kVA/2880W on-line pure sine wave 1U rackmount UPS
- Add up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime

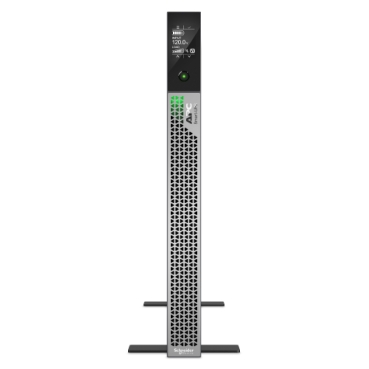

- Rack/Tower convertible (rail kit included)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
AED36,999.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
| Category | Specification |
|---|---|
| Overview | |
| Presentation | Ultra high density on-line power protection with scalable runtime via Li-Ion batteries |
| Lead Time | Special Order – Call for Quoted Lead Times |
| Main | |
| Main Input Voltage | 120 V, 125 V |
| Other Input Voltage | 120 V, 125 V |
| Product Type | Uninterruptible Power Supply (UPS) |
| Main Output Voltage | 120 V |
| Other Output Voltage | 120 V, 125 V |
| kW Rating | 2850 W |
| Rated Power (VA) | 2880 VA |
| Input Connection Type | NEMA L5-30P |

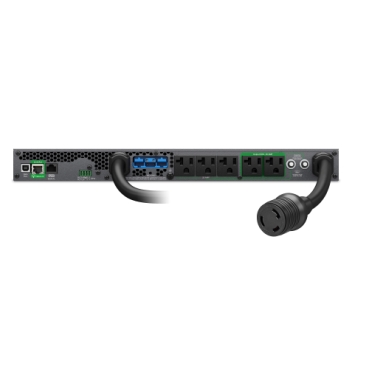

| Output Connection Type | 5 × NEMA 5-20R, 1 × NEMA L5-30R |
| Rack Units | 1U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Battery | |
| Battery Type | Lithium-Ion (Li-Ion) |
| Typical Recharge Time | 1.5 h |
| Battery Voltage | 50 V |
| RBC Quantity | 1 |
| Extendable Runtime | Yes |
| Battery Charge Power | 448 W |
| Replacement Battery | APCRBC173-LI |
| Provided Equipment | RJ45 cable, USB cable, country-specific power cord, rack brackets, support rails, installation guide, warranty card |
| Software | SmartConnect software for remote monitoring |
| General | |
| Product Range | Smart-UPS Ultra |
| Redundant | No |
| Physical | |
| Color | Silver grey |
| Height | 1.7 in (43 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 22.05 in (560 mm) |
| Net Weight | 35.05 lb (15.9 kg) |
| Mounting Mode | Rack-mounted with kit, Tower-mounted with kit |
| Mounting Preference | No preference |
| Two Post Mountable | Yes |
| USB Compatible | Yes |
| Input | |
| Input Frequency | 50/60 Hz |
| Output | |
| Max Configurable Power (W) | 2850 W |
| Max Configurable Power (VA) | 2880 VA |
| Output Frequency | 50/60 Hz ± 3 Hz sync to mains |
| Crest Factor | 3:1 |
| Topology | On-Line |
| Wave Type | Sine wave |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Conformance | |
| Certifications | UL/cUL listed, FCC |
| Standards | UL 1778, CSA C22.2 No.107.3-05, FCC Part 15 Class A |
| Environmental | |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Relative Humidity | 0–95% non-condensing |
| Storage Relative Humidity | 0–95% non-condensing |
| Acoustic Level | 55 dB |
| IP Protection | IP20 |
