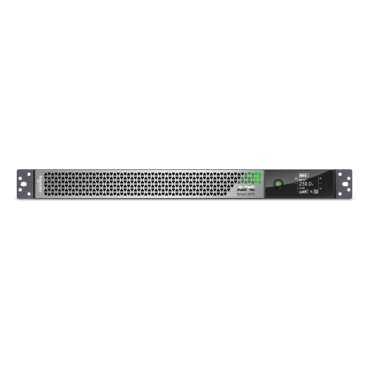

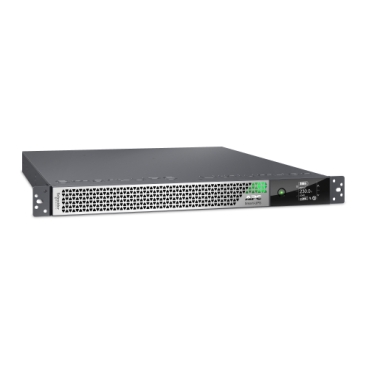

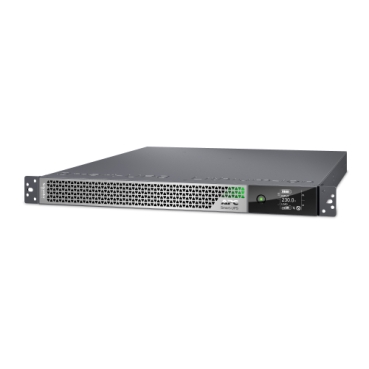

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 208/230V, 3x C13, 2x C19 IEC outlets, Network Card, Extended runtime, W/rail kit

Add to Wishlist
  • 3kVA/3KW on-line pure sine wave 1U rackmount UPS
  • Add up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime
  • Rack/Tower convertible (rail kit included)
  • Graceful shutdown of physical servers, virtual machines and HCI Clusters

AED43,899.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SRTL3KRM1UWNC Category: Tag:

šŸ“„ Overview

Attribute Details
Presentation Ultra high density on-line power protection with scalable runtime supported by Lithium-Ion batteries.
Lead Time Special Order – Call for Quoted Lead Times
Product Type Uninterruptible Power Supply (UPS)
Range of Product Smart-UPS Ultra
Web Sub-Family High density
Redundant No

āš” Main Specifications

Attribute Details
Run Time Load 3000 W
Minā€“Max Load 300ā€“3000 W
Runtime at Max Load 4 minutes 37 seconds
Max Capacity Used 100%
Rated Power (W / VA) 3000 W / 3000 VA
Max Configurable Power 3000 W / 3000 VA

šŸ”‹ Battery & Runtime

Attribute Details
Battery Type Lithium-Ion (Li-Ion)
Battery Voltage 50 V
Battery Charge Power 448 W
Typical Recharge Time 1.5 hours
RBC Quantity 1
Extendable Run Time Yes
Replacement Battery APCRBC173-LI

šŸ”Œ Input Specifications

Attribute Details
Main Input Voltage 208ā€“240 V
Other Input Voltage 208ā€“240 V
Input Connection Type BS1363A British
Input Frequency 50/60 Hz auto-sensing
Efficiency at Full Load 160ā€“275 V adjustable (half load)

šŸ”„ Output Specifications

Attribute Details
Main Output Voltage 208ā€“240 V
Other Output Voltage 230 V
Output Frequency (sync to mains) 50/60 Hz Ā± 3 Hz
Output Connections 3 Ɨ IEC 60320 C13, 2 Ɨ IEC 60320 C19
Crest Factor 3:1
Wave Type Sine Wave
Topology On-Line
Bypass Type Internal Bypass (Automatic and Manual)

šŸ§° General & Included Equipment

Attribute Details
Included Equipment RJ45 Cable
USB Compatible Yes
Two Post Mountable Yes

šŸ“¦ Physical

Attribute Details
Rack Units (U) 1U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Silver grey
Height 1.7 in (43 mm)
Width 17.008 in (432 mm)
Depth 22.05 in (560 mm)
Net Weight 35.05 lb (15.9 kg)
Mounting Mode Rack-mounted with kit
Mounting Preference No preference

āœ… Certifications & Compliance

Attribute Details
Certifications CE
Marking CE Mark
Standards EN/IEC 62040-1

šŸŒ± Environmental

Attribute Details
Operating Temperature 32ā€“104 Ā°F (0ā€“40 Ā°C)
Storage Temperature 5ā€“113 Ā°F (-15ā€“45 Ā°C)
Operating Altitude 0ā€“10,000 ft
Storage Altitude 0ā€“50,000 ft (0ā€“15,240 m)
Operating Humidity 0ā€“95% non-condensing
Storage Humidity 0ā€“95% non-condensing
Acoustic Level 55 dB
IP Degree of Protection IP20
