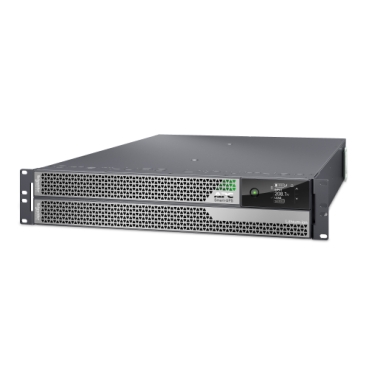

APC Smart-UPS Ultra On-Line, 5000VA, Lithium-ion, Rack/Tower 2U, 230V, Hardwired 3-Wire Output, Network Card, Extended runtime, W/rail kit

Add to Wishlist
  • 5kVA/4.9kW double-conversion on-line pure sine wave 2U rackmount UPS
  • Add up to 10 external battery packs (SRTL180RM2UBP) for extended runtime

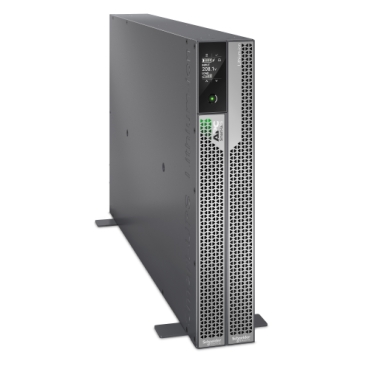

  • Rack/Tower convertible (rail kit included)
  • Lithium-ion battery minimizes the need to replace battery during the life time of UPS

AED67,299.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input and Hardwired 3-Wire output. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SRTL5KRM2UT-HW Category: Tag:

Overview

Attribute Value
Lead Time Usually in Stock

Main

Attribute Value
Run Time for Load 4900 W
Min-Max Load 490–4900 W
Runtime at Max Load 5 min 35 s
Max Capacity Used 100%
Main Input Voltage 208 V
Product Type Uninterruptible Power Supply (UPS)
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
kW Rating 4900 W
Rated Power in VA 4900 VA
Input Connection Type NEMA L6-30P
Output Connection Type 1
Output Connector Type Hard Wire 3-wire (1PH + N + G) 1
Rack Units 2U
Range of Product Smart-UPS Ultra

Battery & Runtime

Attribute Value
Battery Type Li-Ion (Lithium Ion)
Typical Recharge Time 1.5 h
RBC Quantity 1
Battery Voltage 180 V
Battery Charge Power 600 W rated
Battery Life 8–10 years
Extendable Runtime Yes (1)
Runtime & Efficiency Graphs View Graphs

Physical

Attribute Value
Color Silver grey
Height 3.4 in (86 mm)
Width 17.008 in (432 mm)
Depth 27.6 in (701 mm)
Product Weight 64.4 lb (29.2 kg)
Mounting Location Front
Mounting Preference No preference
Mounting Mode Tower-mounted with kit
USB Compatible Yes
Mounting Position Horizontal

Provided Equipment

Item
Network cable
Rack mounting brackets
USB cable
Front cover
Earth terminal block
Temperature sensor
Stabilization feet
Rail extension

Input

Attribute Value
Input Frequency 40–70 Hz auto-sensing
Efficiency at Full Load 180–275 V adjustable (half load)

Output

Attribute Value
Max Configurable Power (Watts) 4900 W
Harmonic Distortion Less than 2%
Output Frequency 50/60 Hz ± 3 Hz (sync to mains)
Crest Factor 3:1
Topology Double Conversion Online
Waveform Type Sine wave
Bypass Type Internal (Automatic and Manual)
Max Configurable Power (VA) 4900 VA

Conformance

Attribute Value
Product Certifications ENERGY STAR V2.0 (USA), CE, UKCA, EN/IEC 62040-1
Marking CE, UKCA

Environmental

Attribute Value
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity (Operating) 0–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Temperature 5–113 °F (-15–45 °C)
Storage Relative Humidity 0–95% non-condensing
Storage Altitude 0–50,000 ft (0–15,240 m)
Acoustic Level 55 dBA
Online Thermal Dissipation 1047 Btu/h
IP Degree of Protection IP20
