APC Smart-UPS Ultra On-Line, 8000VA, Lithium-ion, Rack/Tower 4U, 208V, 2 L6-20R + 2 L6-30R NEMA outlets, Network Card, Extended runtime, W/rail kit

Add to Wishlist
  • 4U, 8000VA/8000W rack/ tower convertible UPS with autorotating LCD display
  • Add up to 10 external battery packs (SRTL180RM2UBP) for extended runtime
  • Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
  • EcoStruxure™ Ready for remote monitoring and management

AED93,099.00

Add to Wishlist

With Smart-UPS™ Ultra you can put up to 8000W of power protection in places never before possible. Make installation effortless with a 8kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous.

SKU: SRTL8KRM4UT Category: Tag:

Overview

Attribute Value
Lead Time Usually in Stock

Main

Attribute Value
Run Time for Load 8000 W
Min-Max Load 800–8000 W
Runtime at Max Load 7 min 12 s
Max. Capacity Used 100%
Main Input Voltage 208 V AC
Product or Component Type Uninterruptible Power Supply (UPS)
Other Input Voltage 208/240 V
Main Output Voltage 208 V AC
Other Output Voltage 208 V
kW Rating 8000 W
Rated Power in VA 8000 VA
Input Connection Type Hard Wire 3-wire 48 A
Output Connection Type 2 NEMA L6-30R, 2 NEMA L6-20R
Output Connector Type Hard Wire 3-wire (2PH + G) x1
Number of Rack Units 4U
Number of Cables 1
Battery Type Li-Ion (Lithium Ion)
Provided Equipment Temperature Probe, USB Cable, Stabilization Feet, Strain Relief, Rack Mounting Hardware
Range of Product Smart-UPS Ultra

Batteries & Runtime

Attribute Value
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 1.5 h
RBC Quantity 2
Battery Voltage 180 V
Battery Charge Power 1200 W rated
Battery Life 5–10 years
Extendable Run Time Yes (1)

General

Attribute Value
Product Web Sub-Family High Density
Number of Power Module Free Slots 0
Redundant No

Physical

Attribute Value
Color Silver Grey

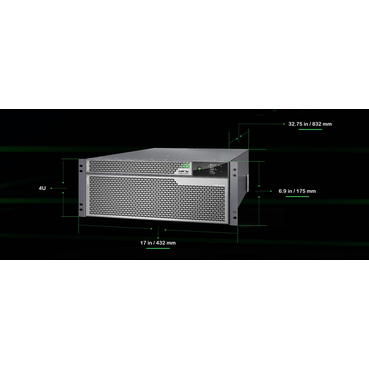

Height 6.9 in (175 mm)
Width 17.008 in (432 mm)
Depth 32.8 in (832 mm)
Product Weight 121.3 lb(US) (55 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted with kit, Tower-mounted with kit
Mounting Position Horizontal, Vertical
USB Compatible Yes

Input

Attribute Value
Input Frequency 40–70 Hz ± 0.1 Hz (auto-sensing)
Number of Input Connectors 1 Hard Wire 3-wire (2PH + G)

Output

Attribute Value
Max Configurable Power (Watts) 8000 W
Harmonic Distortion Less than 5%
Output Frequency 50/60 Hz ± 3 Hz (sync to mains)
Crest Factor 3:1
Topology Double Conversion Online
Waveform Type Sine Wave
Bypass Type Internal (Automatic & Manual)
Full Load Runtime 00:07:00 (8000 W)
Half Load Runtime 00:15:00 (4000 W)
Max Configurable Power (VA) 8000 VA

Conformance

Attribute Value
Product Certifications cULus, ENERGY STAR V2.0 (USA)
Marking UL
Standards UL 1778

Environmental

Attribute Value
Operating Ambient Temperature 32–104 °F (0–40 °C)
Relative Humidity (Operating) 0–95% (non-condensing)
Operating Altitude 0–10,000 ft
Storage Temperature 5–113 °F (-15–45 °C)
Storage Relative Humidity 0–95% (non-condensing)
Storage Altitude 0–50,000 ft (0–15,240 m)
