UPS , Power Back up and accessories

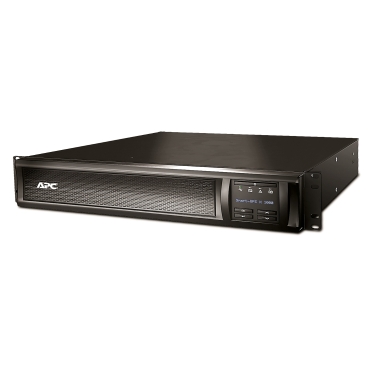

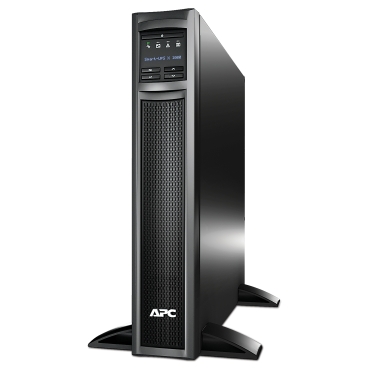

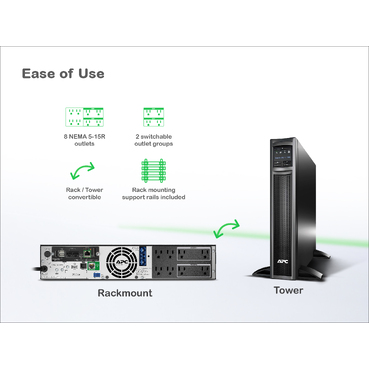

APC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port+NMC, Extended runtime
- 1000VA/900W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)

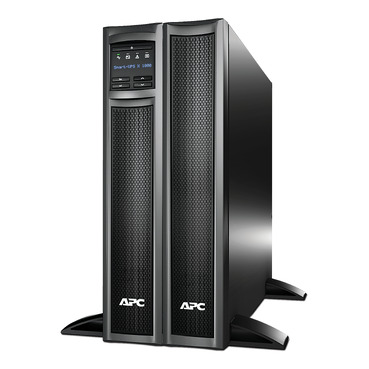

- Add up to 5 external battery packs (SMX48RMBP2U)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Preinstalled NMC for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
AED9,999.00
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
š Overview
| Attribute | Details |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
ā” Main Specifications
| Attribute | Details |
|---|---|
| Run Time Load | 900 W |
| MināMax Load | 90ā900 W |
| Runtime at Max Load | 8 minutes 15 seconds |
| Max Capacity Used | 100% |
š Battery & Runtime
| Attribute | Details |
|---|---|
| Battery Type | Lead-Acid |
| Battery Voltage | 48 V |
| Battery Capacity | 345 Ah |
| Extendable Run Time | Yes |
| Included Battery Modules | 0 |
| Empty Battery Slots | 0 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| DC Overcurrent Protection | 60 A |
| Battery Charge Power | 99 W rated |
| Battery Life | 3ā5 years |
| Replacement Battery | APCRBC116 |
| Full Load Runtime | 7 minutes 15 seconds (900 W) |
| Half Load Runtime | 19 minutes 48 seconds (450 W) |
š Input Specifications
| Attribute | Details |
|---|---|
| Main Input Voltage | 120 V AC 1 phase |
| Input Connection Type | NEMA 5-15P |
| Plug Standard | 5-15P |
| Max Input Current/Phase | 12 A |
| Input Current Rated | 8.33 mA |
| Switching Current Capacity | 15 A |
| Input Protection Type | Circuit breaker |
| Efficiency Voltage Range | 82ā143 V AC |
| Input Frequency | 50/60 Hz Ā± 3 Hz (auto-sensing) |
š Output Specifications
| Attribute | Details |
|---|---|
| Main Output Voltage | 120 V |
| Rated Power (W / VA) | 900 W / 1000 VA |
| Max Configurable Power (W / VA) | 900 W / 1000 VA |

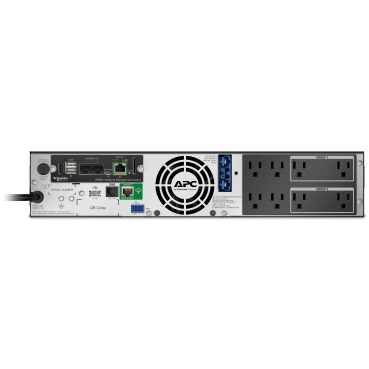

| Output Connections | 8 Ć NEMA 5-15R |
| Crest Factor | 3:1 |
| Harmonic Distortion | <5% |
| Output Voltage Tolerance | Ā±2% |
| Topology | Line Interactive |
| Wave Type | Sine Wave |
| Output Frequency (sync to mains) | 50/60 Hz Ā± 3 Hz |
š» Connectivity & Software
| Attribute | Details |
|---|---|
| Communication Ports | SmartConnect Ethernet port |
| Software | SmartConnect software (remote monitoring; availability varies) |
| Network Card Installed | Yes (pre-installed) |
š§° General & Included Equipment
| Attribute | Details |
|---|---|
| Included Equipment | Installation guide, mounting brackets, support feet, USB & Ethernet cables, RS-232 cable |
| Number of Power Modules | 0 |
| Web Sub-Family | Extended run |
| Redundant | No |
š¦ Physical
| Attribute | Details |
|---|---|
| Rack Units (U) | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 3.50 in (8.9 cm) |
| Depth | 19.29 in (49 cm) |
| Net Weight | 50.4 lb (22.86 kg) |
| Mounting Mode | Rack-mounted with kit |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Mounting Position | Horizontal, Vertical |
| Two Post Mountable | Yes |
| USB Compatible | Yes |
š± Environmental
| Attribute | Details |
|---|---|
| Acoustic Level | 40 dB |
| Thermal Dissipation (Online) | 117 Btu/h |
| Operating Altitude | 0ā10,000 ft |
| Storage Altitude | 0ā50,000 ft (0ā15,240 m) |
| Operating Temperature | 32ā104 Ā°F (0ā40 Ā°C) |
| Storage Temperature | 5ā113 Ā°F (-15ā45 Ā°C) |
| Operating Relative Humidity | 0ā95% |
| Storage Relative Humidity | 0ā95% |
| IP Degree of Protection | IP20 |
