04 3550600 052 7036860

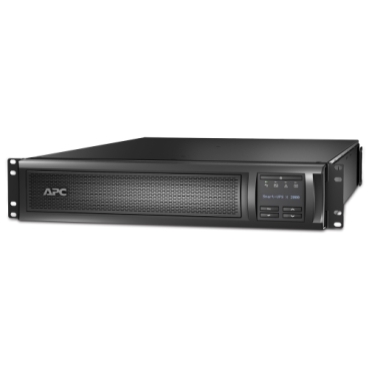

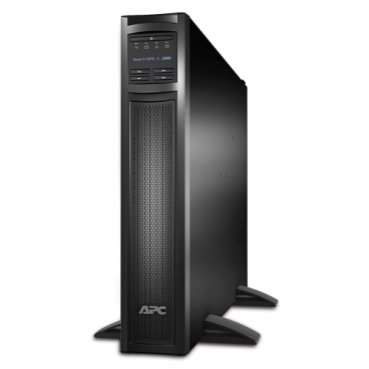

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, NMC, Extended runtime

Add to Wishlist
  • 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable low voltage setting of 100V-127V
  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Preinstalled NMC for network-based UPS monitoring & management
  • Graceful shutdown of physical servers, virtual machines and HCI clusters

AED18,399.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX2000RMLV2UNC Category: Tag:
Category Attribute Value
Overview Lead Time Usually in Stock
Run Time for Load 10 min 56 s
Max Capacity Used 100%
Main Power 1800 W (Min-max: 180–1800 W)
Product Type Uninterruptible Power Supply (UPS)
Batteries & Runtime Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Lead-Acid battery
Extendable Run Time Yes (1 module)
Included Battery Modules 1
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery APCRBC117
Battery Charge Power 229 W rated
General Provided Equipment Software CD, Documentation, Installation Guide, Network Management Card, Rack Mounting Hardware, Brackets, Rails, RS-232 cable, USB cable
Number of Power Modules 0
Power Module Filled Slots 0
Power Module Free Slots 0
Product Web Sub-family Network card pre-installed
Redundant No
Physical Rack Unit 2U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black

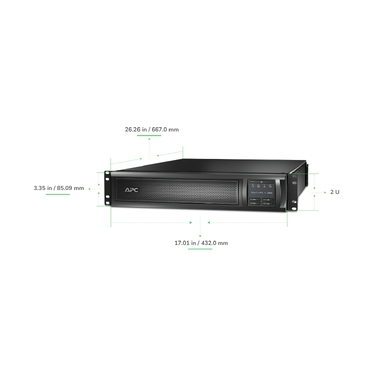

Dimensions (H x W x D) 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm)
Net Weight 84.77 lb (38.45 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable No
USB Compatible No
Input Main Input Voltage 120 V
Other Input Voltages 100 V, 110 V, 127 V
Input Connection Type NEMA 5-20P
Voltage Range (Efficiency at Full Load) 75–154 V adjustable
Input Frequency 50/60 Hz ±3 Hz auto-sensing
Output Main Output Voltage 120 V
Other Output Voltages 100 V, 110 V, 127 V
kW Rating 1800 W
Rated Power 1920 VA

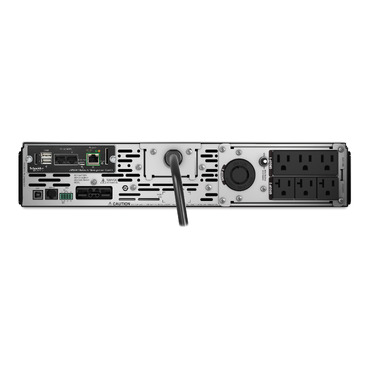

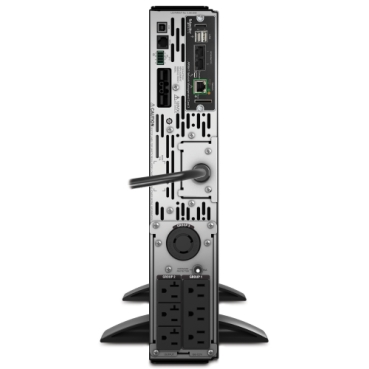

Output Connection Types 3 NEMA 5-15R, 3 NEMA 5-20R, 1 NEMA L5-20R
Harmonic Distortion <5%
Max Configurable Power 1800 W / 1920 VA
Transfer Time 4 ms typical / 8 ms max
Topology Line Interactive
Wave Type Sine Wave
Output Frequency (Sync to Mains) 50/60 Hz ±3 Hz
Conformance Product Certifications BSMI, CSA, NOM, TÜV, VCCI Class A
Equipment Protection Policy Lifetime: $150,000
Environmental Acoustic Level 55 dBA
Online Thermal Dissipation 203 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
Operating Relative Humidity 0–95%
Storage Relative Humidity 0–95%
