UPS , Power Back up and accessories

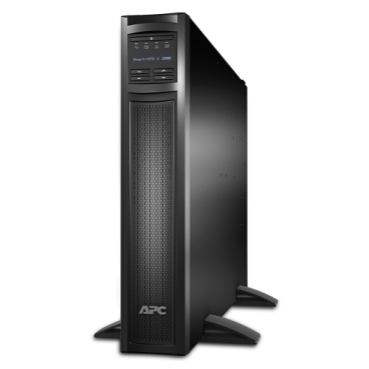

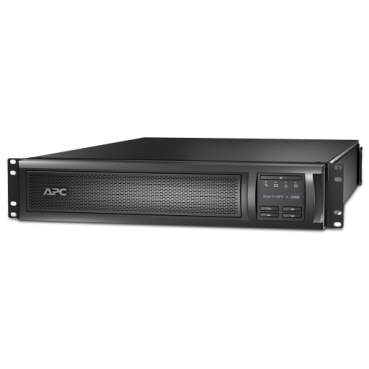

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, SmartSlot, Extended runtime [TAA]
- 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable low voltage setting of 100V-127V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
AED14,499.00
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
| Category | Parameter | Value |
|---|
| Overview | Lead time | Usually in Stock |
| Run time for load | 10 min 56 s (at 1800 W) |
| Load Range | 180–1800 W |
| Max. Capacity Used | 100% |
| Product or Component Type | Uninterruptible Power Supply (UPS) |
| Batteries & Runtime | Battery Type | Lead-Acid battery |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 h |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC117 |
| Battery Charge Power | 229 W rated |
| Run Time Graph | Available |
| Efficiency Graph | Available |
| General | Provided Equipment | CD with software |
| Number of Power Modules | 0 |
| Filled Power Module Slots | 0 |
| Free Power Module Slots | 0 |
| Product Web Sub-family | Extended run |
| Redundant | No |
| Physical | Rack Unit Height | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 3.35 in (8.5 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 26.26 in (66.7 cm) |
| Product Weight | 84.77 lb (38.45 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No (0) |
| USB Compatible | Yes |
| Input | Main Input Voltage | 120 V |
| Other Input Voltage | 100 V |
| Input Connection Type | NEMA 5-20P |
| Input Voltage Range | 75–154 V adjustable |
| Input Frequency | 50/60 Hz ± 3 Hz (auto-sensing) |
| Output | Main Output Voltage | 120 V |
| Other Output Voltage | 100 V |
| kW Rating | 1800 W |
| Rated Power | 1920 VA |
| Output Connection Type | 3 × NEMA 5-15R |
| Harmonic Distortion | < 5% |
| Max Configurable Power | 1920 VA / 1800 W |
| Transfer Time | 2–4 ms |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
| Conformance | Product Certifications | BSMI |
| TAA Compliance | Yes |
| Equipment Protection Policy | Lifetime: $150,000 |
| Environmental | Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 203 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Operating Humidity | 0–95% |
| Storage Humidity | 0–95% |
