04 3550600 052 7036860

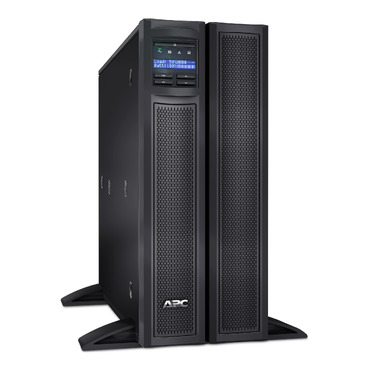

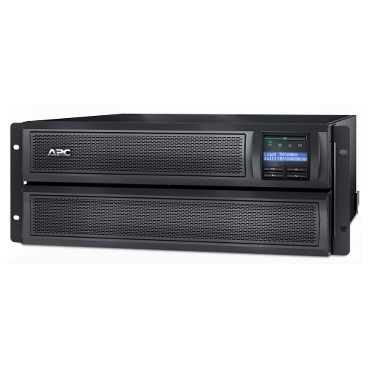

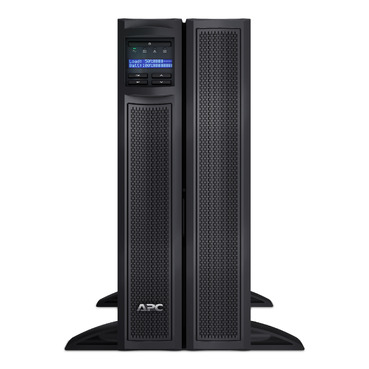

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, Network card, Extended runtime, Short depth

Add to Wishlist
  • 2200VA/1980W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Preinstalled NMC for network-based UPS monitoring & management

AED19,099.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX2200HVNC Category: Tag:
Category Attribute Value
Overview Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time Usually in Stock
Main Product or Component Type Uninterruptible power supply (UPS)
Batteries & Runtime Run Time View Runtime Graph (action_new_window)
Battery Type Lead-Acid battery
Extendable Run Time 1
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3…5 year(s)
Replacement Battery APCRBC143 (action_new_window)
Battery Charge Power (Watts) 233 W rated
General Provided Equipment CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, Temperature Probe, USB cable, Web/SNMP Management Card
Number of Power Modules 0
Number of Power Module Filled Slots 0
Number of Power Module Free Slots 0
Redundant No
Physical Number of Rack Units 4U
Cable Length 6.56 ft (2.00 m)
Number of Cables 1
Color Black
Height 17.01 in (43.2 cm)
Width 7.01 in (17.8 cm)
Depth 19.02 in (48.3 cm)
Net Weight 85.01 lb(US) (38.56 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable 1
USB Compatible Yes
Input Main Input Voltage 208 V, 230 V
Other Input Voltage 220 V, 240 V
Input Connection Type BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Efficiency at Full Load 140…280 V
Input Frequency 50/60 Hz +/- 3 Hz auto-sensing
Output Main Output Voltage 208 V, 230 V
Other Output Voltage 208 V, 220 V, 240 V
kW Rating 1980 W
Rated Power in VA 2200 VA

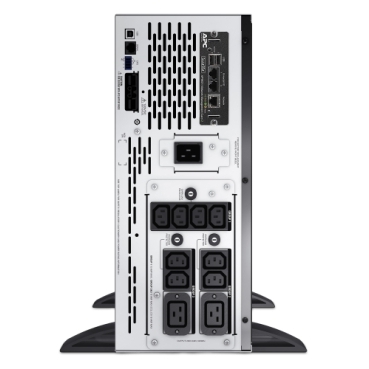

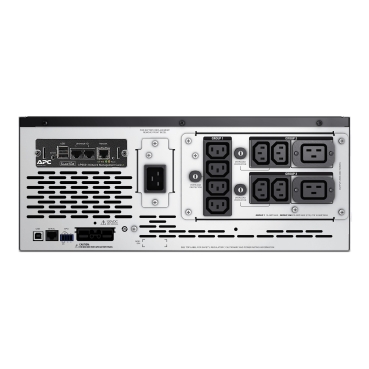

Output Connection Type 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
Harmonic Distortion Less than 5%
Maximum Configurable Power in VA 2200 VA
Max Configurable Power (Watts) 1980 W
Transfer Time 6 ms typical : 10 ms maximum
Topology Line Interactive
Wave Type Sine wave
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz sync to mains
Conformance Product Certifications CE, EAC, IRAM, RCM, TISI, VDE, UK PSTI
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental Acoustic Level 55 dBA
Online Thermal Dissipation 150 Btu/h
Operating Altitude 0…10000 ft
Ambient Air Temperature for Operation 32…104 °F (0…40 °C)
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage Altitude 0…50000 ft (0…15240 m)
Relative Humidity 0…95 %
Storage Relative Humidity 0…95 %
