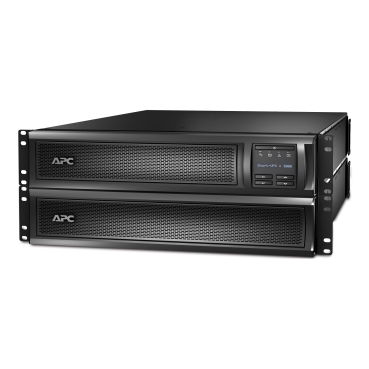

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

Add to Wishlist
  • 3kVA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable high voltage setting of 200V-240V

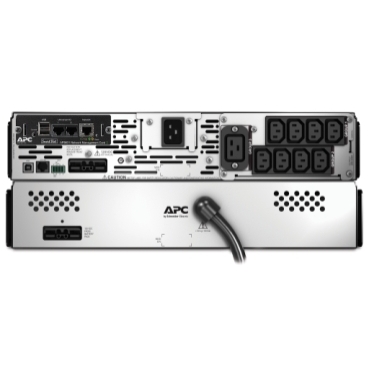

  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels

AED18,399.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX3000RMHV2U Category: Tag:
Category Attribute Value
Overview Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead Time Usually in Stock
Main Product or Component Type Uninterruptible power supply (UPS)
Complementary Communication Port Type SmartSlot
Batteries & Runtime Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Lead-Acid battery
Extendable Run Time Yes (1)
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3–5 year(s)
Replacement Battery APCRBC117
Battery Charge Power (Watts) 245 W rated
General Provided Equipment CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User Manual, USB cable, Rack Mounting brackets
Number of Power Modules 0
Number of Power Module Filled Slots 0
Number of Power Module Free Slots 0
Product Web Sub-family Extended run
Redundant No
Physical Number of Rack Units 2U
Cable Length 6 ft (1.8 m)
Number of Cables 1
Color Black
Height 3.35 in (8.5 cm)
Width 17.01 in (43.2 cm)
Depth 26.26 in (66.7 cm)
Net Weight 82.28 lb (37.32 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable No (0)
USB Compatible Yes
Input Main Input Voltage 208 V, 230 V
Other Input Voltage 220 V, 240 V
Input Connection Type IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
Efficiency at Full Load 140–280 V
Input Frequency 50/60 Hz ± 3 Hz auto-sensing
Output Main Output Voltage 230 V
Other Output Voltage 208 V, 220 V, 240 V
kW Rating 2700 W
Rated Power (VA) 3000 VA
Output Connection Type 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
Crest Factor 3:1
Harmonic Distortion Less than 5%
Maximum Configurable Power (VA) 3000 VA
Max Configurable Power (Watts) 2700 W
Transfer Time 2–4 ms (6 ms typical, 10 ms maximum)
Topology Line Interactive
Wave Type Sine wave
Output Frequency (sync to mains) 50/60 Hz ± 3 Hz
Conformance Product Certifications CE, CSA, EAC, IRAM, RCM, VDE, UK PSTI
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Environmental Acoustic Level 55 dBA
Online Thermal Dissipation 184 Btu/h
Operating Altitude 0–10,000 ft
Ambient Air Temperature for Operation 32–104 °F (0–40 °C)
Ambient Air Temperature for Storage 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
Relative Humidity 0–95%
Storage Relative Humidity 0–95%
