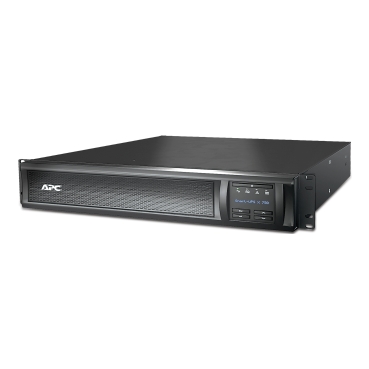

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port+NMC, Extended runtime
- 750VA/675W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)
- Add up to 5 external battery packs (SMX48RMBP2U)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Preinstalled NMC for network-based UPS monitoring & management
AED9,099.00
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions.
| Category | Specification |
|---|
| Overview |
| Lead Time | Usually Ships within 2 Weeks |
| Main |
| Product Type | Uninterruptible Power Supply (UPS) |
| Complementary |
| Communication Port Type | SmartConnect Ethernet port |
| Software Package | SmartConnect software for remote monitoring (feature availability varies) |
| Batteries & Runtime |
| Battery Type | Lead-Acid battery |
| Extendable Runtime | Yes |
| Included Battery Modules | 1 |
| Battery Slots Empty | 1 |
| Typical Recharge Time | 3 h |
| RBC Quantity | 1 |
| Replacement Battery | APCRBC116 |
| Battery Charge Power | 104 W rated |
| Battery Design Life | 3–5 years |
| DC Overcurrent Protection | 60 A |
| General |
| Provided Equipment | USB cable, RS-232 signalling cable, Removable mobile power pack, Rack mounting brackets, Installation guide, Cat 5 ethernet cable |
| Number of Power Modules | 0 |
| Filled Power Module Slots | 0 |
| Free Power Module Slots | 0 |
| Product Sub-family | Extended run |
| Redundant | No |
| Physical |
| Rack Units | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 3.50 in (8.9 cm) |
| Depth | 19.29 in (49 cm) |
| Net Weight | 48.61 lb (22.05 kg) |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted with kit |
| Two Post Mountable | Yes |
| USB Compatible | Yes |
| Input |
| Main Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Max Input Current/Phase | 12 A |
| Max Short Circuit Withstand | 1000 kA |
| Switching Current Capacity | 15 A |
| Efficiency Range | 75–154 V adjustable; 82–143 V typical |
| Input Frequency | 50/60 Hz ± 3 Hz auto-sensing |
| Output |
| Main Output Voltage | 120 V |
| Other Output Voltage | – |
| kW Rating | 675 W |
| Rated Power (VA) | 750 VA |
| Max Configurable Power | 675 W / 750 VA |
| Output Connection Type | 8 × NEMA 5-15R |
| Harmonic Distortion | < 5% |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz sync to mains |
| Full Load Runtime | 11 min 30 sec @ 660 W |
| Half Load Runtime | 27 min @ 330 W |
| Conformance |
| Certifications | cUL Listed, ENERGY STAR V2.0 (USA) |
| Equipment Protection Policy | Lifetime: $150,000 |
| Environmental |
| Acoustic Level | 40 dBA |
| Thermal Dissipation | 69 Btu/h |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Relative Humidity | 0–95% |
| Storage Relative Humidity | 0–95% |
