04 3550600 052 7036860

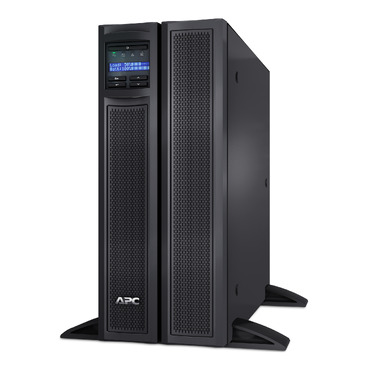

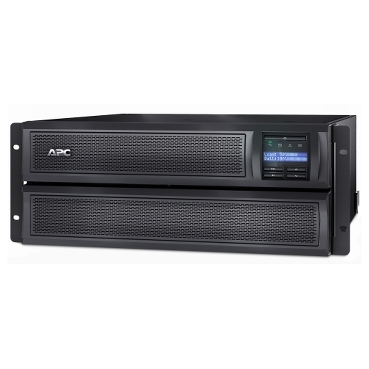

APC Smart-UPS X, Line Interactive,2000VA,Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-20R NEMA,SmartSlot,Extended runtime,Short depth

Add to Wishlist
  • 1920VA/1800W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable low voltage setting of 100V-127V

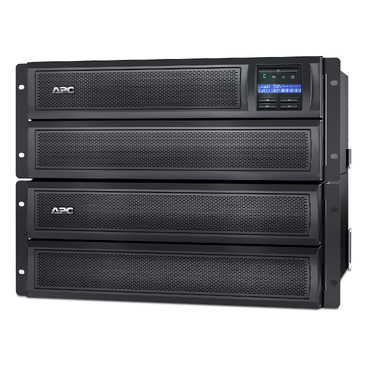

  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

AED12,199.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX2000LV Category: Tag:
Category Specification
Overview Intelligent and efficient network power protection for servers, POS, routers, etc.
Lead Time Usually Ships within 2 Weeks
Product Type Uninterruptible Power Supply (UPS)
Communication Port SmartSlot
Battery & Runtime
Battery Type Lead-Acid battery
Extendable Run Time Yes (1)
Included Battery Modules 0
Empty Battery Slots 0
Typical Recharge Time 3 hours
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery APCRBC143
Battery Charge Power 229 W rated
General
Provided Equipment CD with software, Documentation CD, Installation guide, Rack mounting hardware, brackets, support rails, Removable support feet, RS-232 cable, USB cable
Power Module (Filled) 0
Power Module (Free) 0
Sub-family Extended run
Redundant No
Physical
Rack Units 4U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black
Dimensions (H x W x D) 17.01 in x 7.01 in x 19.02 in (43.2 cm x 17.8 cm x 48.3 cm)
Net Weight 85.19 lb (38.64 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two-Post Mountable Yes
USB Compatible Yes
Input
Main Input Voltage 120 V
Other Input Voltages 100 V, 110 V, 127 V
Input Connection Type NEMA 5-20P
Input Voltage Range 75–154 V adjustable
Input Frequency 50/60 Hz ± 3 Hz auto-sensing
Output
Main Output Voltage 120 V
Other Output Voltages 100 V, 110 V, 127 V
Power (kW) 1800 W
Power (VA) 1920 VA

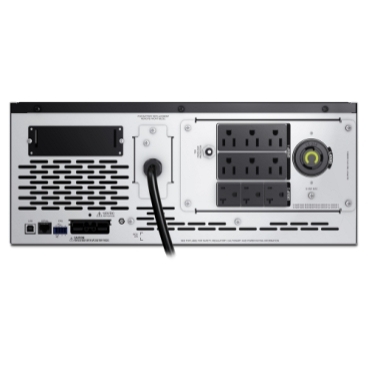

Output Connections 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-20R
Harmonic Distortion < 5%
Max Configurable Power 1920 VA / 1800 W
Transfer Time 4ms typical; 8ms maximum
Topology Line Interactive
Wave Type Sine wave
Output Frequency Sync 50/60 Hz ± 3 Hz sync to mains
Conformance
Certifications BSMI, CSA, NOM, TÜV, VCCI Class A
Equipment Protection Lifetime, $150,000
Environmental
Acoustic Level 55 dBA
Thermal Dissipation 203 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
Relative Humidity 0–95%
Storage Humidity 0–95%
