APC Step-Down Transformer RM 2U 208V IN 120V OUT w/L5-20 Receptacles – AP9627
Overview
AP9627Features

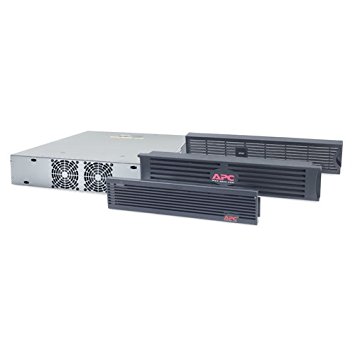

APC Step-Down Transformer RM 2U 208V IN 120V OUT w/L5-20 Receptacles
The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.
Includes : Rack Mounting Brackets , User Manual
-
Transformer for Step-down or Step-up or IsolationStep down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer
| Weight | 043.18 kg |
|---|
Detailed Tech Specification
Output
-
Nominal Output Voltage
120V
-
Overload Protection
Yes
-
Maximum Total Current Draw
20
-
Output Connections(4) NEMA L5-20R (Battery Backup)
Input
-
Nominal Input Voltage
208V
-
Input frequency
60 Hz +/- 3 Hz
-
Input Connections
NEMA L6-30P
-
Cord Length
0.61meters
-
Number of Power Cords
1
-
Load Capacity
5000VA
-
Maximum Input Current
26A
Physical
-
Maximum Height
89mm , 8.9CM
-
Maximum Width
445mm , 44.5CM
-
Maximum Depth
610mm , 61.0CM
-
Rack Height
2U
-
Net Weight
43.18KG
-
Shipping weight
50.0KG
-
Shipping Height
254mm , 25.4CM
-
Shipping Width
622mm , 62.2CM
-
Shipping Depth
953mm , 95.3CM
-
Color
Black
Environmental
-
Operating Temperature
0 – 40 °C
-
Operating Relative Humidity
0 – 95 %
-
Operating Elevation
0-3000meters
-
Storage Temperature
-25 – 65 °C
-
Storage Relative Humidity
0 – 95 %
-
Storage Elevation
0-15000meters
Conformance
-
Approvals
CSA, UL 1778, UL Listed
-
Standard warranty
2 years repair or replace
Sustainable Offer Status
-
EOLI
Available in Documentation tab
