APC SUA1500RM2U Smart-UPS 1500VA
U Height: 2U
Wattage/VA: 1500W
Voltage: 110-120V
AED2,499.00

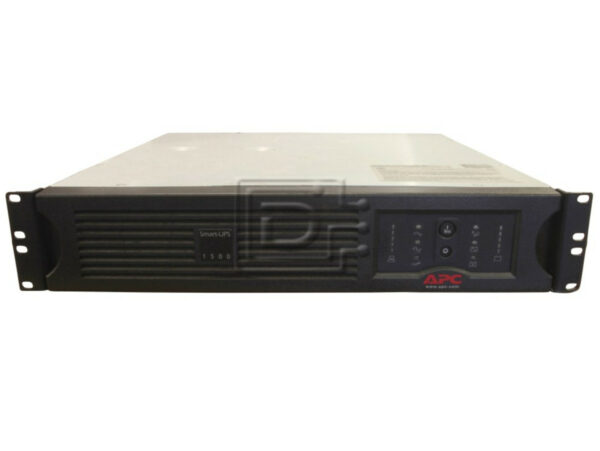

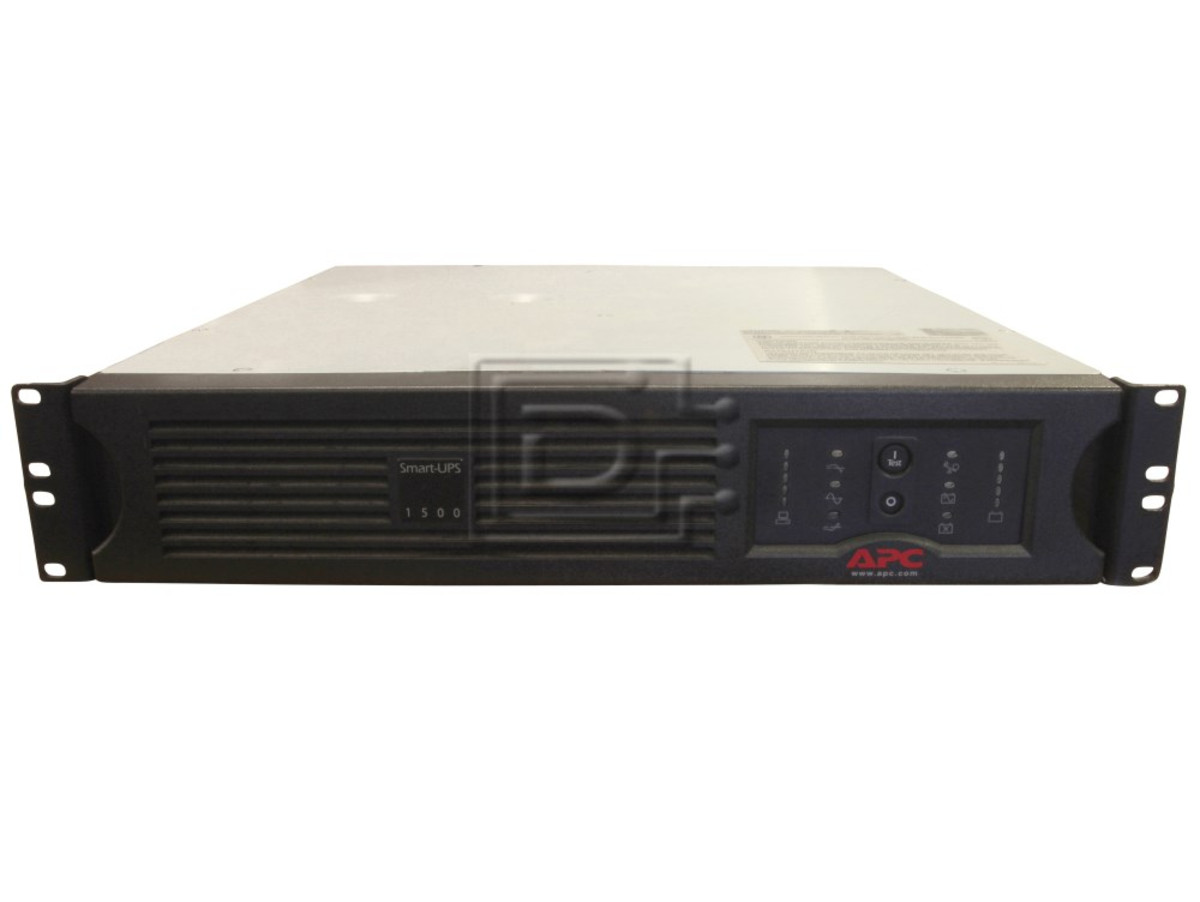

APC SUA1500RM2U Smart-UPS 1500VA USB 2U Rack Mountable 120V 980W Uninterruptible Power Supply – Refurbished
APC Smart-UPS, 980 Watts / 1440 VA, Input 120V /Output 120V, Interface Port DB-9 RS-232, SmartSlot, USB, 2U Rack Height, Uninterruptible Power Supply.
| Specifications | |
|---|---|
| Model Number | SUA1500RM2U |
| Output | |
| Output Power Capacity | 980 Watts / 1440 VA |
| Max Configurable Power | 980 Watts / 1440 VA |
| Nominal Output Voltage | 120V |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Output Connections | (6) NEMA 5-15R |
| Input | |
| Nominal Input Voltage | 120V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | NEMA 5-15P |
| Cord Length | 2.44 meters |
| Input voltage range for main operations | 82 – 144V |
| Input voltage adjustable range for mains operation | 75 – 154V |
| Batteries & Runtime | |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 3 hours |
| Replacement Battery | RBC24 |
| RBC™ Quantity | 1 |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, SmartSlot, USB |
| Available SmartSlot™ Interface Quantity | 1 |
| Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Emergency Power Off (EPO) | Optional |
| Surge Protection and Filtering | |
| Surge energy rating | 459 Joules |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Maximum Height | 89.00 mm |
| Maximum Width | 432.00 mm |
| Maximum Depth | 457.00 mm |
| Rack Height | 2U |
| Net Weight | 28.64 KG |
| Environmental | |
| Operating Environment | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95% |
| Operating Elevation | 0-3000 meters |
| Storage Temperature | -15 – 45 °C |
| Storage Relative Humidity | 0 – 95% |
| Storage Elevation | 0-15000 meters |
| Audible noise at 1 meter from surface of unit | 46.00 dBA |
| Online Thermal Dissipation | 171.00 BTU/hr |
| RoHS | Compliant |
