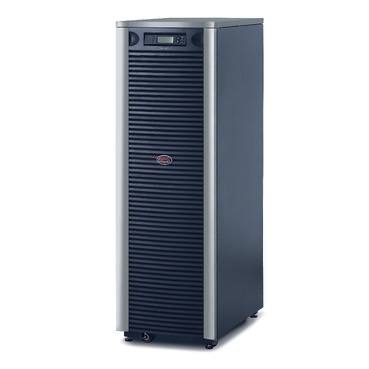

APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 208/240V

Add to Wishlist

AED204,699.00

Add to Wishlist

Overview

Attribute Value
Lead Time Usually in Stock

Main

Attribute Value
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 120 V, 208 V
Other Output Voltage 240 V
Product or Component Type Uninterruptible Power Supply (UPS)
kW Rating 9600 W
Rated Power in VA 12000 VA
Output Connector Type 1 Hard Wire 4-wire (2PH+N+G)
Battery Type Lead-Acid battery
Provided Equipment CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card
Range of Product Symmetra LX

Batteries & Runtime

Attribute Value
Included Battery Modules 9
Battery Slots Empty 4
Extendable Run Time Yes (1)
Typical Recharge Time 7.5 h
Battery Charge Power 1035 W rated
Battery Life 3–5 years
Additional Info Configurable for 120/208 or 120/240 output voltage

General

Attribute Value
Product Web Sub-family 4kVA power increments
Number of Power Module Filled Slots 3
Number of Power Module Free Slots 2
Redundant Yes

Physical

Attribute Value
Color Black, Silver
Height 59.69 in (151.6 cm)
Width 19.02 in (48.3 cm)
Depth 28.58 in (72.6 cm)
Net Weight 1077.27 lb (488.64 kg)
Mounting Location Front
Mounting Preference No preference
Mounting Mode Not rack-mountable
Two Post Mountable No
USB Compatible No

Input

Attribute Value
Input Frequency 45–65 Hz auto-sensing
Number of Input Connectors 1 Hard Wire 4-wire (2PH+N+G)
Efficiency at Full Load 96–138 V line to neutral
Input Total Harmonic Distortion < 7% at full load
Input Power Factor at Full Load 0.98

Output

Attribute Value
Max Configurable Power (Watts) 12800 W
Maximum Configurable Power in VA 16000 VA
Harmonic Distortion < 5% at full load
Output Frequency (sync to mains) 47–63 Hz
Frequency (unsynced) 60 Hz ± 0.1% (60 Hz nominal), 50 Hz ± 0.1% (50 Hz nominal)
Crest Factor Up to 5:1
Topology Double Conversion Online
Wave Type Sine wave
Bypass Type Internal Bypass (Auto & Manual), Optional External Bypass
Maximum Output Current 56 A

Conformance

Certifications & Standards
CSA
FCC Part 15 Class A
UL 1778

Environmental

Attribute Value
Operating Temperature 32–104 °F (0–40 °C)
Operating Altitude 0–10,000 ft
Relative Humidity (Operating) 0–95%
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–15,000 ft (0–4572 m)
Storage Relative Humidity 0–95%
Acoustic Level 62 dBA
Online Thermal Dissipation 4995 Btu/h
