UPS , Power Back up and accessories

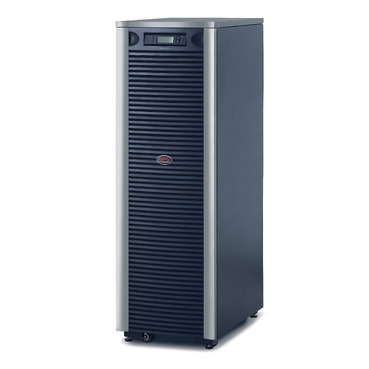

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Ext. Run Tower, 208/240V
- 34U Rackmount UPS Chassis, 12.8W/16kVA
- 4 Power and 9 Battery Modules included
- Supports up to 13 batteries for extended runtime needs (sold separately)
- EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime.
AED229,899.00
Symmetra LX is a modular, scaleable, redundant UPS platform designed for critical uptime needs. The Extended runtime Symmetra PXR has 9 battery modules, 4 more than the Symmetra LX. With the ability to scale up to 13 batteries (sold separately), you can have extended runtime as you need it. 1-Year Secure Network Management Card subscription is included.
Overview
| Attribute | Value |
|---|---|
| Lead Time | Usually in Stock |
Main
| Attribute | Value |
|---|---|
| Run Time for Load | 12800 W (Min–Max: 1280–12800 W) — 20 min 49 s |
| Max Capacity Used | 100% |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 120 V, 208 V |
| Other Output Voltage | 240 V |
| kW Rating | 12800 W |
| Rated Power in VA | 16000 VA |
| Output Connector Type | 1 × Hard Wire 4-wire (2PH+N+G) |
| Battery Type | Lead-Acid battery |
| Provided Equipment | CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card |
| Range of Product | Symmetra LX |
Batteries & Runtime
| Attribute | Value |
|---|---|
| Included Battery Modules | 9 |
| Battery Slots Empty | 4 |
| Typical Recharge Time | 7.5 h |
| Extendable Run Time | Yes |
| Battery Charge Power | 1035 W rated |
| Battery Life | 3–5 years |
| Additional Information | Configurable for 120/208 or 120/240 output voltage |
General
| Attribute | Value |
|---|---|
| Product Web Sub-family | 4kVA power increments |
| Power Module Free Slots | 1 |
| Power Module Filled Slots | 4 |
| Redundant | Yes |
Physical
| Attribute | Value |
|---|---|
| Color | Black, Silver |
| Height | 59.69 in (151.6 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 28.58 in (72.6 cm) |
| Net Weight | 1110.34 lb (503.64 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two Post Mountable | No |
| USB Compatible | No |
Input
| Attribute | Value |
|---|---|
| Input Frequency | 45–65 Hz auto-sensing |
| Number of Input Connectors | 1 × Hard Wire 4-wire (2PH+N+G) |
| Efficiency at Full Load | 96–138 V line to neutral |
| Input Total Harmonic Distortion | Less than 7% for full load |
| Input Power Factor at Full Load | 0.98 |
Output
| Attribute | Value |
|---|---|
| Max Configurable Power (Watts) | 12800 W |
| Max Configurable Power (VA) | 16000 VA |
| Harmonic Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47–63 Hz (sync), 60 Hz ±0.1% (not synced), 50 Hz ±0.1% (not synced) |
| Crest Factor | Up to 5:1 |
| Topology | Double Conversion Online |
| Wave Type | Sine wave |
| Bypass Type | Internal Bypass (Automatic and Manual), Optional External Bypass |
| Maximum Output Current | 75 A |
Conformance
| Certifications & Standards |
|---|
| CSA |
| FCC Part 15 Class A |
| UL 1778 |
Environmental
| Attribute | Value |
|---|---|
| Operating Temperature | 32–104 °F (0–40 °C) |
| Relative Humidity (Operating/Storage) | 0–95% |
| Operating Altitude | 0–10000 ft |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–15000 ft (0–4572 m) |
| Acoustic Level | 62 dBA |
| Online Thermal Dissipation | 4995 Btu/h |
