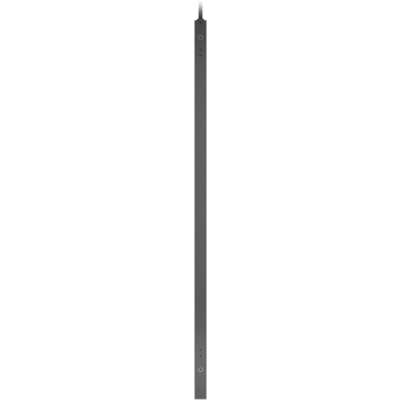

APC Vertical Rack PDU Basic – ZeroU 5.7kW 120/208V Output

Add to Wishlist

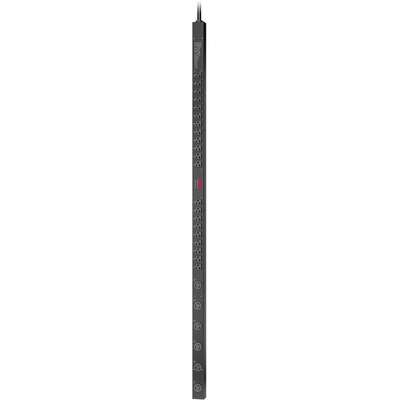

  • Provides 21 NEMA 5-20R and 6 NEMA L6-20R outlets for comprehensive power distribution

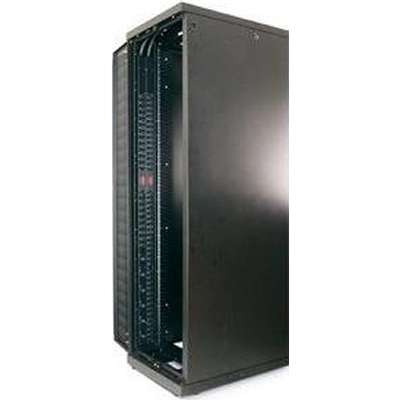

  • Vertical mounting to save valuable rack space
  • Supports up to 5.7 kW
  • Built to withstand demanding data center environments

AED4,299.00

Add to Wishlist

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 21 NEMA 5-20R outlets and 6 NEMA L6-20R outlets, providing ample connections for IT equipment. It includes a 3-foot power cord with a NEMA L21-20P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
SKU: AP7563 Category: Tag:
Category Attribute Details
General Information Product Name Vertical Rack PDU Basic – ZeroU 5.7kW 120/208V Output
Manufacturer Part Number AP7563
Product Line Basic Rack
Packaged Quantity 1 Each
Product Type PDU
Technical Information PDU Type Basic
Plug / Connector Type NEMA L21-20P
Receptacle Type NEMA 5-20R, NEMA 6-20R
Receptacle Detail 21 x NEMA 5-20R, 6 x NEMA 6-20R
Power Description Input Voltage 208 V
Output Voltage 120 V AC, 208 V AC
Physical Characteristics Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Placement Side
Rack Height 0U
Cord Length 3 ft
Height 70″
Width 2.2″
Depth 1.7″
Miscellaneous Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Product Family Basic Rack
For Country / Region United States
Optimized Energy Efficiency Yes
Product Take Back Program Yes
REACH Declaration URL REACH Declaration
EU RoHS Declaration URL EU RoHS Declaration
Environmental Profile Environmental Disclosure
