Huawei AR2240C,SRU40C,4 SIC,2 WSIC,2 XSIC,350W AC Power

Add to Wishlist
Model: Huawei AR2240C,SRU40C,4 SIC,2 WSIC,2 XSIC,350W AC Power
Detail:
Huawei AR2240C,SRU40C,4 SIC,2 WSIC,2 XSIC,350W AC Power
Product Code Huawei Router – AR2240C
Memory Configured with SRU40/SRU60/SRU80/SRU100: 2 GB

Configured with SRU200: 4 GB
Flash 16 MB
ServiceĀ interfaces (standard configuration) WAN interfaces:

Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces

Configured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfaces

LAN interfaces: none
Extended slots 4 SIC slots, 2 WSIC slots, and 2 XSIC slots
Power module type Pluggable power module
Weight 8.85 kg (19.51 lb)
Dimensions (W x D x H) 442.0 mm x 470.0 mm x 88.1 mm

AED8,699.00

Add to Wishlist

AR2240CĀ router reducesĀ equipment and deployment costs due to integrated routing, switching, 3G, voice, and security functions in a single device. At the same time, the routerĀ provideĀ enterprises with flexible accessĀ and rich interfaces to adapt to a variety of terminals.

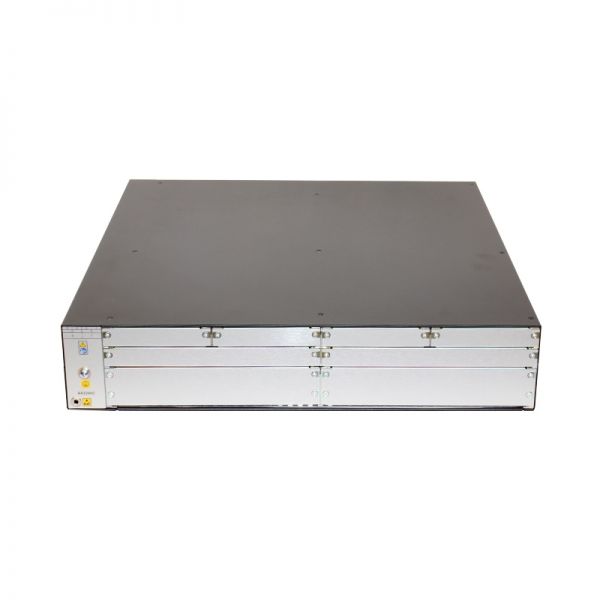

Figure 1 shows the appearance of Huawei Router –Ā AR2240C.

Ā ar2240c-appearance

Figure 2 shows the front panel of Huawei Router –Ā AR2240C.

Ā ar2240c-front

Note:

ā‘  Ground point
ā‘” ESD jack
ā‘¢ Two WSIC slots
ā‘£ Two XSIC slots
ā‘¤ Four SIC slots

FigureĀ 3Ā shows theĀ backĀ panel of Huawei Router –Ā AR2240C.

ar2240c-back

Note:

ā‘  SRU slots
ā‘” Two power module slots
ā‘¢ Built-in fan module

TheĀ Modules, Cards

Table 2 shows the recommended elements for theĀ Huawei Router –Ā AR2240C.

Model Description
AC power module
AR0MPSAP3500 350W AC Power Module
DC power module
AR0MPSDP3500 350W DC Power Module
WAN interface card
AR-1E3T3M-W 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card
AR0MSDE11A00 1-Port Fractional Channelized E1/T1 WAN Interface Card
xDSL interface card
AR01SLV1XA 1-Port VDSL2 over POTS WAN Interface Module
AR0MSLA1XA01 1-Port ADSL2+ ANNEX A/M WAN Interface Module

Compare to Similar Items

TableĀ 3Ā shows the comparisonĀ between AR2240C and AR2220E.

Model AR2240C AR2220E
WAN Speed with Services 1 Gbit/s



 800 Mbit/s


Fixed WAN Ports 2 x GE Combo 2 x GE
Fixed LAN Ports 4 x GE + 4 x GE SFP +2 x GE Combo 3 x GE (1 x Combo)
Wireless Controller Wireless Controller is integrated in software
Memory 2 GB 1 GB
Category:

AR2204C Specification
WAN Speed with Services 1 Gbit/s
Firewall Performance (large packets) 6 Gbit/s
Number of recommended users 500
Fixed WAN Ports 4 x GE + 4 x GE SFP + 2 x GE Combo
SIC Slots 4
WSIC Slots (default/max**) 2/4
XSIC Slots (default/max**) 2/4
EXSIC Slot (shared with XSIC slots) 1
DSP Slots 0
USB 2.0 Ports 1
Mini-USB Ports 1
Console Port 1
Memory 2 GB
Flash
(default/max**)		 2 GB/8 GB
Maximum Power 350W (Single Power Module)

700W (Dual Power Module)
Redundant Power Supply Internal: AC, DC
AC Power 100V to 240V
Frequency 50 Hz/60 Hz
DC Power –
Dimensions (height x width x depth) 88.1 mm x 442 mm x 470 mm
Weight 4.95 kg (without power module and interface card)
Ambient Temperature 0Ā°C to 45Ā°C
Relative Humidity 5% to 95% (non-condensing)
