Routers

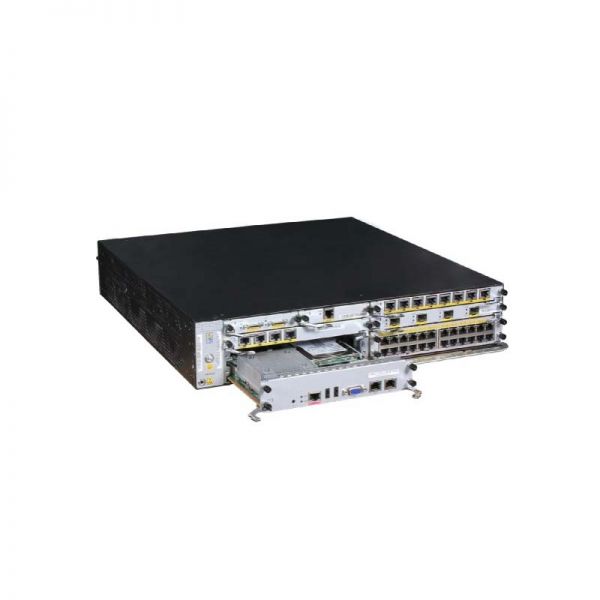

AR2240C-S – Huawei AR2200 Series Router
| Model: | AR2240C-S – Huawei AR2200 Series Router |
| Detail: |
Huawei Enterprise 10/100/1000 Router, 3GE WAN (2 Combo), 2G Memory
|
| Product Code | Huawei Router – AR2240C-S |
| Memory | Configured with SRU40/SRU60/SRU80/SRU100: 2 GB
Configured with SRU200: 4 GB |
| Flash | 16 MB |
| Service interfaces (standard configuration) | WAN interfaces:
Configured with SRU40/SRU60/SRU80/SRU100: 1 GE electrical interface and 2 GE combo interfaces Configured with SRU200: 2 10 GE optical interfaces and 4 GE combo interfaces LAN interfaces: none |
| Extended slots | 4 SIC slots, 2 WSIC slots, and 2 XSIC slots |
| Power module type | Pluggable power module |
| Dimensions (W x D x H) | 442.0 mm x 470.0 mm x 88.1 mm |
AED6,299.00
AR2240C-S router reduces equipment and deployment costs due to integrated routing, switching, 3G, voice, and security functions in a single device. At the same time, the router provide enterprises with flexible access and rich interfaces to adapt to a variety of terminals.
The Modules, Cards
Table 2 shows the recommended elements for the Huawei Router – AR2240C-S.
| Model | Description |
| AC power module | |
| AR0MPSAP3500 | 350W AC Power Module |
| DC power module | |
| AR0MPSDP3500 | 350W DC Power Module |
| WAN interface card | |
| AR-1E3T3M-W | 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
| AR0MSDE11A00 | 1-Port Fractional Channelized E1/T1 WAN Interface Card |
| xDSL interface card | |
| AR01SLV1XA | 1-Port VDSL2 over POTS WAN Interface Module |
| AR0MSLA1XA01 | 1-Port ADSL2+ ANNEX A/M WAN Interface Module |
Compare to Similar Items
Table 3 shows the comparison between AR2240C-S and AR2220E.
| Model | AR2240C-S | AR2220E |
| WAN Speed with Services | 1 Gbit/s
|
800 Mbit/s
|
| Fixed WAN Ports | 2 x GE Combo | 2 x GE |
| Fixed LAN Ports | 4 x GE + 4 x GE SFP +2 x GE Combo | 3 x GE (1 x Combo) |
| Wireless Controller | Wireless Controller is integrated in software | |
| Memory | 2 GB | 1 GB |
AR2204C-S Specification |
|
| WAN Speed with Services | 1 Gbit/s |
| Firewall Performance (large packets) | 6 Gbit/s |
| Number of recommended users | 500 |
| Fixed WAN Ports | 4 x GE + 4 x GE SFP + 2 x GE Combo |
| SIC Slots | 4 |
| WSIC Slots (default/max**) | 2/4 |
| XSIC Slots (default/max**) | 2/4 |
| EXSIC Slot (shared with XSIC slots) | 1 |
| DSP Slots | 0 |
| USB 2.0 Ports | 1 |
| Mini-USB Ports | 1 |
| Console Port | 1 |
| Memory | 2 GB |
| Flash (default/max**) |
2 GB/8 GB |
| Maximum Power | 350W (Single Power Module)
700W (Dual Power Module) |
| Redundant Power Supply | Internal: AC, DC |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC Power | – |
| Dimensions (height x width x depth) | 88.1 mm x 442 mm x 470 mm |
| Weight | 4.95 kg (without power module and interface card) |
| Ambient Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% (non-condensing) |
