AR6140-16G4XG – Huawei NetEngine AR6100 Series Routers


Model: AR6140-16G4XG – Huawei NetEngine AR6100 Series Routers
Detail:
AR6140-16G4XG 4*GE 4*10GE SFP+ WAN,12*GE LAN,1*USB 2.0,4*SIC slot,2*WSIC slot,2*POWER slot
Product Code AR6140-16G4XG
Processor 16-core, 1.85 GHz
Memory 4 GB
Flash 1 GB
Micro SD card (default sd1) Not supported
Hard disk Not supported
Dimensions (H x W x D)

Ā

Ā

• With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height

• With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height

Processor 16-core, 1.85 GHz
Memory 4 GB
Maximum input current 3 A
Maximum output power 150 W
RPS power supply Not supported
PoE power supply Not supported

9,999.00 د.إ

Huawei’s next-generation NetEngine AR6000 series enterprise routers use high-performance multi-core processors and a nonblocking switching structure, helping to deliver higher forwarding performance than the industry average. The NetEngineĀ AR6000 also integrates functions such as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring diversified andĀ cloud-based services are fully supported.

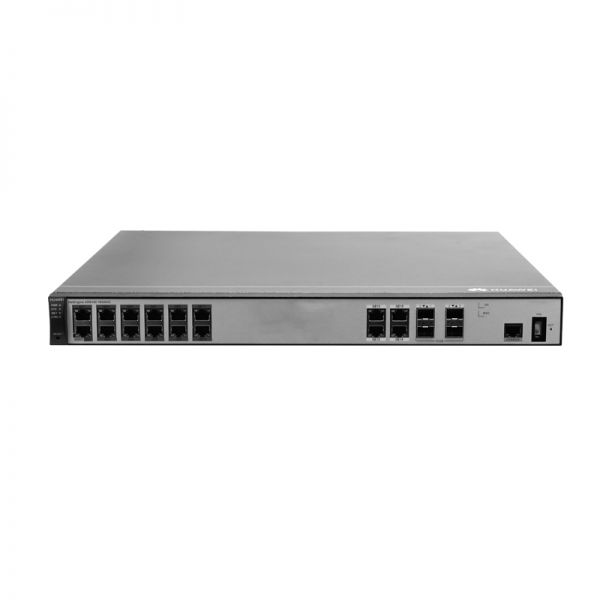

Figure 1 shows the front panel of Huawei AR6140-16G4XG.

Note:

ā‘  RST button ā‘£ WAN interface: four 10GE optical interface
ā‘” LAN interfaces: twelve GE electrical interfaces ⑤ Console interface
ā‘¢ WAN interfaces: four GE electrical interfaces ā‘„ USB interface 2.0 (host)

Figure 2 shows the back panel of Huawei AR6140-16G4XG.

Note:

ā‘  Ground point ā‘¢ Two power module slots
ā‘” Four SIC slots

Compare to Similar Items

TableĀ 2Ā shows the comparison.Ā

Product Code

AR6140-16G4XGĀ

AR6140-9G-2AC

Processor 16-core 4-Core
Memory 4 GB 2 GB
Flash 1 GB 1 GB
Dimensions (H x W x D)

Ā

Ā

• With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height

• With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height

• With no rack-mounting bracket installed: 44.5 mm x 442 mm xĀ 420 mm

• With rack-mounting brackets installed: 44.5 mm x 482.6 mm x 572.5 mm



Rated input voltage range (AC) 100 V to 240 V,Ā 50 Hz/60 Hz 100 V to 240 V, 50 Hz/60 Hz
Maximum input voltage range (AC) 90 V to 264 V, 47 Hz to 63 Hz 90 V to 264 V, 47 Hz to 63 Hz



Maximum input current 3 A 3 A
Maximum output power 150 W 150W
Typical power consumption 60 W 18W
MaximumĀ powerĀ consumption 96.8 W 32W
Fans Built-in, unpluggable fans Built-in, unpluggable fans
Airflow (facing the front panel) Left to right Left to right
Category:

AR6140-16G4XG Specification

System Parameters

Processor 16-core, 1.85 GHz
Memory 4 GB
Flash 1 GB
Micro SD card (default sd1) Not supported
Hard disk Not supported
Dimensions (H x W x D)

Ā

Ā

• With no rack-mounting bracket installed: 44.4 mm x 442.0 mm x 424.0 mm (1.75 in. x 17.40 in. x 16.69 in.), 1U height

• With rack-mounting brackets installed: 44.4 mm x 482.6 mm x 572.5 mm (1.75 in. x 19.00 in. x 22.54 in.), 1U height

Power specifications

Rated input voltage range (AC) 100 V to 240 V, 50 Hz/60 Hz
Maximum input voltage range (AC) 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current 3 A
Maximum output power 150 W
RPS power supply Not supported
PoE power supply Not supported

Power consumption (empty chassis)

Typical power consumption 60 W
Maximum power consumption 96.8 W

Heat dissipation

Fans Built-in, unpluggable fans
Airflow (facing the front panel) Left to right

Interface density

Management interface 1 (RJ45)
CON/AUX interfaces 1 (RJ45)
USB 3.0 interface 1
Service interfaces (standard configuration)

Ā

Ā

LAN interfaces: twelve GE electrical interfaces

WAN interfaces: four GE electrical interfaces and four 10GE optical interfaces

Extended slots

Ā

4 x SIC

2 x WSIC

Environment parameters

Operating temperature 0°C to 45°C (32°F to 113°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Operating relative humidity 5% to 95%, non-condensing
Operating altitude < 5000 m (16404.2 ft.)

Software Features and Protocols

Basic function

Ā

DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MACĀ management, STP
WLAN (AC)

Ā

AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user

management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN securityĀ (WEP, WPA, WPA2, key management)

IPv4 unicast routing Routing policies, static routes, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing

Ā

Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+
Basic IPv6 function

Ā

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6
IPv6 tunneling Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP
Multicast

Ā

IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD
MPLS LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN
QoS

Ā

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestionĀ avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),

hierarchical QoS, Smart Application Control (SAC)

Security

Ā

ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attackĀ source tracing, online behavior management, IPS, URL filtering
Management andĀ maintenance

Ā

Upgrade management, device management, web-based network management, GTL, SNMP

(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,

NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA

Safety and Regulatory Standards

EMC standardsĀ compliance CISPR32 Class A

EN 55032 Class A

CISPR24

EN 55024

ETSI EN 300 386

AS/NZS CISPR32 Class A

FCC Part 15 Subpart B Class A

ICES 003 Class A

IEC 61000-3-2

EN 61000-3-2

IEC 61000-3-3

EN 61000-3-3

GB 9254

VCCI-CISPR32 Class A

EnvironmentalĀ standards compliance RoHS

REACH

WEEE

Safety standardsĀ compliance

Ā

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

GB 4943.1
