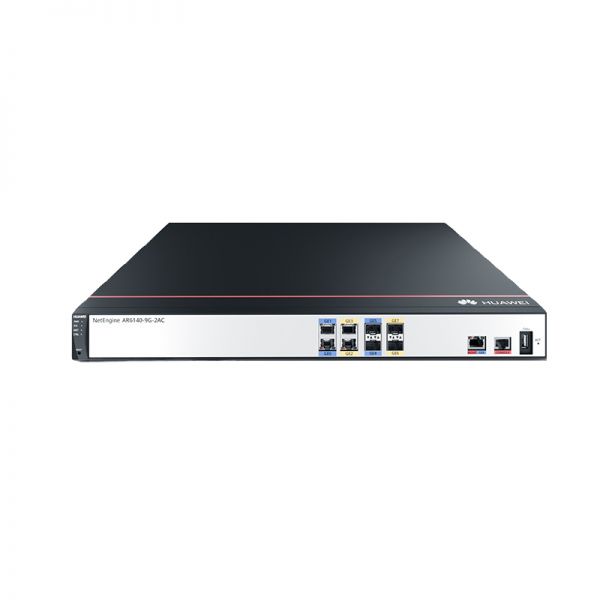

AR6140-9G-2AC – Huawei NetEngine AR6100 Series Routers


Model: AR6140-9G-2AC – Huawei NetEngine AR6100 Series Routers
Detail:
AR6140-9G-2AC AC host, 5*GE RJ45, 4*GE SFP, 1*USB 3.0
Product Code AR6140-9G-2AC
Processor 4-Core
ForwardingĀ Performance (LAN – >Ā WAN + WAN – > LAN,NAT + ACL + QoS,IMIX) 2 Gbps
IPsec performanceĀ (IMIX) 2 Gbps
Fixed WAN ports 2 x GE RJ45 + 2 xĀ GE SFP
Fixed LAN ports 2 x GE SFP + 3 x GEĀ RJ45 (can beĀ configured as WAN)
SIC slots 4
WSIC slots 0 (default)/2Ā (maximum)
XSIC slots \
USB port 1 x USB3.0Ā (compatible with USBĀ 2.0)
Auxiliary or consoleĀ port 1 x RJ45 console port
Memory 2 GB
Flash memory 1 GB
Hot swapping Supported

2,299.00 د.إ

Huawei’s next-generation NetEngine AR6000 series enterprise routers use high-performance multi-core processors and a nonblocking switching structure, helping to deliver higher forwarding performance than the industry average. The NetEngineĀ AR6000 also integrates functions such as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring diversified andĀ cloud-based services are fully supported.

Product Details

FigureĀ 1Ā shows the front panel ofĀ Huawei AR6140-9G-2AC.

Note:

ā‘  RST button ⑤ WAN interfaces: two GE optical interfaces
ā‘” LAN interface: two GE electrical interfaces ā‘„ LAN interface: one GE electrical interface
ā‘¢ WAN interfaces: two GE electrical interfaces ⑦ Console interface
ā‘£ LAN interfaces: two GE optical interfaces ā‘§ USB interface 3.0 (host)

FigureĀ 2Ā shows the back panel of Huawei AR6140-9G-2AC.

Note:

ā‘  Ground point ā‘¢ Two AC power jacks
ā‘” Four SIC slots

Compare to Similar Items

TableĀ 2Ā shows the comparison.Ā

Product Code AR6120 AR6140-9G-2AC AR6280 AR6300
Processor 4-Core 4-Core 16-Core 16-Core
Forwarding

Performance (LAN – >

WAN + WAN – > LAN,

NAT + ACL + QoS,

IMIX)

2 Gbps 2 Gbps SRU-400H: 10 Gbps

SRU-600H: 12 Gbps



SRU-400H: 10 Gbps

SRU-600H: 12 Gbps

IPsec performance

(IMIX)

2 Gbps 2 Gbps SRU-400H: 6 Gbps

SRU-600H: 7.5 Gbps

SRU-400H: 6 Gbps

SRU-600H: 7.5 Gbps

Fixed LAN ports 8 x GE RJ45 (can beĀ configured as WAN)



2 x GE SFP + 3 x GEĀ RJ45 (can be

configured as WAN)

\ \
SIC slots 2 4 4 4
WSIC slots 0 (default)/1

(maximum)

0 (default)/2

(maximum)

2 (default)/4 (maximum) 2 (default)/4

(maximum)

XSIC slots \ \ 2(default)/4 (maximum) 4 (default)/6

(maximum)

USB port



1 x USB 3.0

(compatible with USBĀ 2.0) + 1 x USB 2.0

1 x USB3.0

(compatible with USBĀ 2.0)



1*USB2.0



1*USB2.0



Auxiliary or consoleĀ port 1 x RJ45 console port 1 x RJ45 console port 1 x RJ45 console port 1 x RJ45 console port
Memory 2 GB 2 GB SRU-400H: 8 GB

SRU-600H: 16 GB

SRU-400H: 8 GB

SRU-600H: 16 GB

Flash memory 1 GB/ 512MB 1 GB SRU-400H: 2 GB

SRU-600H: 4 GB

SRU-400H: 2 GB

SRU-600H: 4 GB

RouterĀ dimensions,

With no mounting

bracket installed (H xĀ W x D)

44.5mmĀ Ć—Ā 390mmĀ Ć—Ā 232.5mm



44.5 mm x 442 mm xĀ 420 mm



88.1 mm x 442 mm xĀ 470 mm



130.5 mm x 442 mm xĀ 470 mm
Router dimensions,

With mounting

bracket installed (H xĀ W x D)



44.5mmĀ Ć—Ā 482.6mmĀ Ć—Ā 232.5mm 44.5 mm x 482.6 mmĀ x 572.5 mm



88.1 mm x 482.6 mm xĀ 470 mm



130.5 mm x 482.6 mmĀ x 470 mm
Category:

AR6140-9G-2AC Specification

AR6140-9G-2AC Specification

System Parameters

Processor 4-Core
ForwardingĀ Performance (LAN – >Ā WAN + WAN – > LAN,NAT + ACL + QoS,IMIX) 2 Gbps
IPsec performanceĀ (IMIX) 2 Gbps
Fixed WAN ports 2 x GE RJ45 + 2 xĀ GE SFP
Fixed LAN ports 2 x GE SFP + 3 x GEĀ RJ45 (can beĀ configured as WAN)
SIC slots 4
WSIC slots 0 (default)/2Ā (maximum)
XSIC slots \
USB port 1 x USB3.0Ā (compatible with USBĀ 2.0)
Auxiliary or consoleĀ port 1 x RJ45 console port
Memory 2 GB
Flash memory 1 GB
Hot swapping Supported

Dimensions and Weight

RouterĀ dimensions,With no mountingĀ bracket installed (H xĀ W x D) 44.5 mm x 442 mm xĀ 420 mm



Router dimensions,With mountingĀ bracket installed (H xĀ W x D) 44.5 mm x 482.6 mmĀ x 572.5 mm



PackagingĀ dimensions (H x W xĀ D) 175 mm x 550 mm xĀ 710 mm
Rack IEC
Occupied rack space 1U

Power Specifications, Power Consumption, and Heat Dissipation

Rated input voltageĀ range (AC) 100 V to 240 V
Rated input frequencyĀ (AC) 50 Hz/60 Hz
Maximum inputĀ voltage range (AC) 90 V to 264 V
Maximum inputĀ current (AC) 3 A
MaximumĀ outputĀ power (AC) 150W
Power supplyĀ redundancy Support
Typical powerĀ consumption 18W
Maximum powerĀ consumption 32W
Fan module Built-in unpluggableĀ fan modules
Airflow Left to right
Noise level 54 dB

Environment Parameters

OperatingĀ temperature 0ĀŗC to 45ĀŗC
Operating humidity 5% to 95% (non-condensing)
OperatingĀ altitude < 5000 m (16404.2Ā ft.)
Storage temperature –40ĀŗC to +70ĀŗC
Storage altitude < 5000 m (16404.2Ā ft.)

Software Features and Protocols

Basic function

Ā

DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MACĀ management, STP
WLAN (AC)

Ā

AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user

management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN securityĀ (WEP, WPA, WPA2, key management)

IPv4 unicast routing Routing policies, static routes, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing

Ā

Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+
Basic IPv6 function

Ā

IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6
IPv6 tunneling Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP
Multicast

Ā

IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD
MPLS LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN
QoS

Ā

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestionĀ avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy),

hierarchical QoS, Smart Application Control (SAC)

Security

Ā

ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attackĀ source tracing, online behavior management, IPS, URL filtering
Management andĀ maintenance

Ā

Upgrade management, device management, web-based network management, GTL, SNMP

(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment,

NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA

Safety and Regulatory Standards

EMC standardsĀ compliance CISPR32 Class A

EN 55032 Class A

CISPR24

EN 55024

ETSI EN 300 386

AS/NZS CISPR32 Class A

FCC Part 15 Subpart B Class A

ICES 003 Class A

IEC 61000-3-2

EN 61000-3-2

IEC 61000-3-3

EN 61000-3-3

GB 9254

VCCI-CISPR32 Class A

EnvironmentalĀ standards compliance RoHS

REACH

WEEE

Safety standardsĀ compliance

Ā

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

GB 4943.1
